Issue:

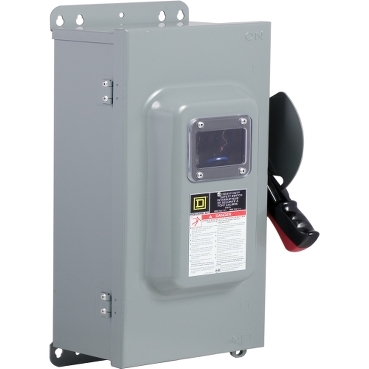

Current Design repair parts for the CH363AWK, Series F6 (F06)

Product Line:
Canadian Heavy Duty Safety Switches

Resolution:
The repair parts are as follows. No other parts are available.
Line Base Assembly - 4056775150 (1 required; arc suppressor assembly and fuse puller not included)
Load Base Assembly - 4056602850 (1 required)
Arc Suppressor Assembly - 4056635550 (obsolete, no longer available, replaced by NNZ51874)
Fuse Puller Kit - FPK0610
Line and Load Lug Assembly - 4025101851 (per lug)
Switch Mechanism - 4056646950 (recommend replacing switch mechanism gasket)
Switch Mechanism Gasket - 4056603201
Handle Assembly - 4056663550
Handle Gasket - 4056603101
Lockplate - 4056672101
Line & Load base mounting screw - 4020515101 (3 for line and 2 for load)
Arc Suppressor mounting screw - 4020514501 (1 required)
Lockplate mounting screw - 2299940562 (2 required)
Equipment Ground Lug Kit - GTK0610

Released for:Schneider Electric USA
