What is the pin out scheme for the EGX100 serial connection?

Issue
What is the pin out scheme for the EGX100 serial connection?

Product Line
EGX100

Environment
EGX100

Cause
What is the scheme of cable for EGX100 serial connection port?

Resolution

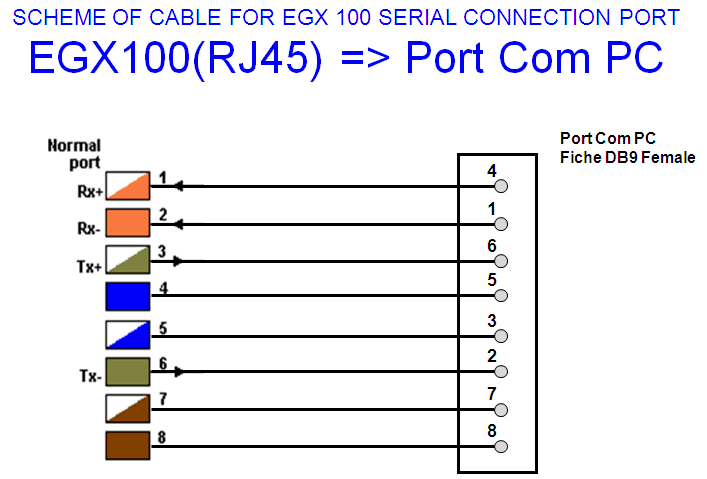

EGX100 RJ45 pin out

Released for: Schneider Electric USA
