Issue:
ATS48 programmable relay for run status

Product Line:
ATS48 Altistart 48

Resolution:

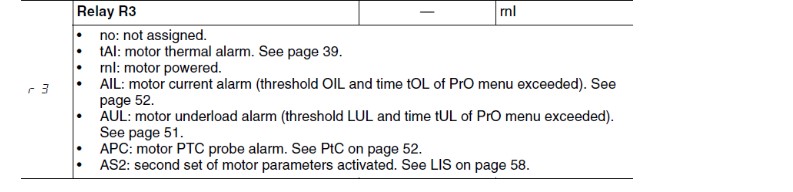

Yes, R3 is a programmable relay, and its factory default is [rnl] 'motor powered' to indicate run status.

The ATS48 also has 2 logic outputs that can be programmed to indicate the motor is running or several other functions.

See attachment
