Issue:
Closing plate for Speed D board underground pull section
Product Line:
Switchboards
Environment:
Speed-D
Resolution:

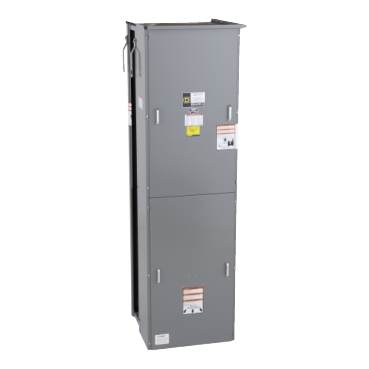

The SA26PS and SA26PSR, Nema 1 and Nema 3R Speedy SWBD Pull sections DO NOT come with standard side covers.
Side covers are normally associated to a switchboard, and the switchboard has side covers on both sides (please reference the Speed-D instruction bulletin).
The SA26PS and SA26PSR Pull sections only come with the metal wire way barrier (has an opening in the top for pulling cable through the pull section to the switchboard.
If there is a wish to use an SA26PS or SA26PSR as "stand alone" Pull sections, side covers MUST be ordered separately as part number 80370-004-02 (indoor side cover - requires (2) per side) 80370-025-01 (N3R side cover - requires (1) per side).
There is not a cover plate that goes over that wireway opening. It must be replaced with a side cover.
Closing plate for Speed D board underground pull section
Product Line:
Switchboards
Environment:
Speed-D
Resolution:
The SA26PS and SA26PSR, Nema 1 and Nema 3R Speedy SWBD Pull sections DO NOT come with standard side covers.
Side covers are normally associated to a switchboard, and the switchboard has side covers on both sides (please reference the Speed-D instruction bulletin).
The SA26PS and SA26PSR Pull sections only come with the metal wire way barrier (has an opening in the top for pulling cable through the pull section to the switchboard.
If there is a wish to use an SA26PS or SA26PSR as "stand alone" Pull sections, side covers MUST be ordered separately as part number 80370-004-02 (indoor side cover - requires (2) per side) 80370-025-01 (N3R side cover - requires (1) per side).
There is not a cover plate that goes over that wireway opening. It must be replaced with a side cover.
Released for: Schneider Electric USA
