What is the led diagnostic information of M580 CPU?

How can we help you today?

The LEDs provide detailed diagnostic information when you observe their pattern in combination:

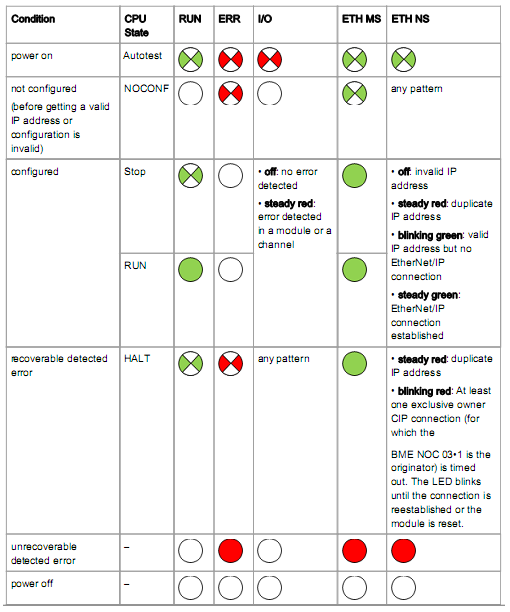

M580 LED Diagnostics Table
