Issue:
Current design repair parts
Product Line:

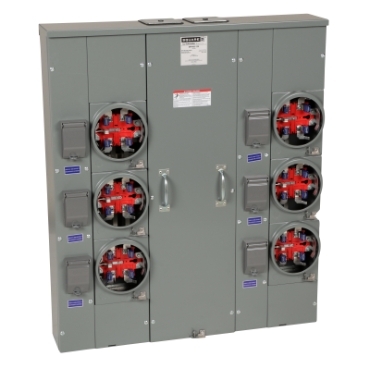

Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover - MP6125C (includes labels)
Circuit Breaker RB Cover - BCV
Cover Screws - 4020513002K
Meter Socket Cover - MMRC
Pull Box Cover - MP56125PC
Line Phase and Neutral Lugs - MMLK250
Load Neutral and Service Ground Lugs Assembly: (2) 7329819862 (includes connector and 5 lugs; used on the left and right side of the pull box)
Mounting Screws - 2153217161, 2142720240, and 2149020120 (one each required per assembly)
Equipment Ground Lugs Assembly - 7329897052 (Includes L-Bracket and 3 lugs; used on the left and right side of the pull box)
Mounting Screws - (4) 2142217101 (2 required per assembly)
Parts Kit - MM125KIT (meter socket line side through tenant breaker base; horn bypass kit not included)
Horn Type Bypass Kit - MMHB
Mounting Channel - 7329652101
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover - MP6125C (includes labels)
Circuit Breaker RB Cover - BCV
Cover Screws - 4020513002K
Meter Socket Cover - MMRC
Pull Box Cover - MP56125PC
Line Phase and Neutral Lugs - MMLK250
Load Neutral and Service Ground Lugs Assembly: (2) 7329819862 (includes connector and 5 lugs; used on the left and right side of the pull box)
Mounting Screws - 2153217161, 2142720240, and 2149020120 (one each required per assembly)
Equipment Ground Lugs Assembly - 7329897052 (Includes L-Bracket and 3 lugs; used on the left and right side of the pull box)
Mounting Screws - (4) 2142217101 (2 required per assembly)
Parts Kit - MM125KIT (meter socket line side through tenant breaker base; horn bypass kit not included)
Horn Type Bypass Kit - MMHB
Mounting Channel - 7329652101
Released for: Schneider Electric USA
