Magelis GTO | Schneider Electric Vietnam

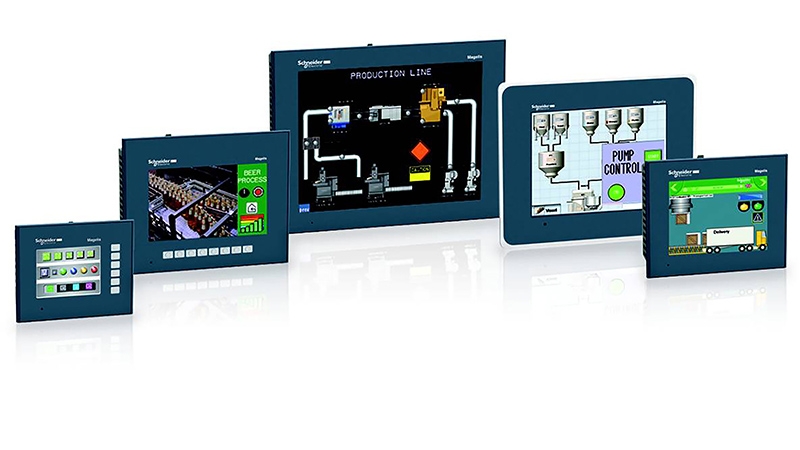

Discover Harmony GTO

Benefits of Harmony GTO

State of the art display
Optimized communication
Easy to install
Sustainable offer

Features of Harmony GTO

TFT 65 Kcolors for all screen sizes for enhanced monitoring conditions and operator user experience.
LED backlight enabling energy saving, with complete dimming functionality to reduce power consumption and designed for specific applications like marine.
The 7” wide display provides up to 40% more graphic space than the standard 5”7 for an equivalent price.
Embedded Ethernet for all terminals with compatibility for various web services (Webgate, Ftp server, Diag server) and 2 Serial lines for communications with devices on the machines.
Up-to-date interfaces (USB 2.0 , SD cards) to allow easy maintenance and strong peripheral links.
The 4GB SD card allows for large log files capability, and the new mini-USB port allows downloads with standard cable.
The same cut-out as the Magelis XBTGT range, for easy substitution in your machine.
Connectors designed for easier cabling of the panels.
Unique, fast connection power plug for the whole range.
Only 4 installation fasteners for the whole range.
Additional function keys on 3”5 and 7” wide displays to allow space saving in visualization and simultaneous actions on buttons for safety.
Harmony GTO operates up to 55°C in a hot environment.
Worldwide certifications including hazardous locations (ISA 1212, ATEX Cat 3 certificates) and Marine "Bridge and Deck" to allow installation in these specific applications.
Environmental covers available to protect against chemical and oil substances in machine tools environment.
Stainless steel panels and conformal coating for applications in the food and beverage or pharmaceutical industries.
