Discover PacDrive 3

PacDrive 3 for an integrated system approach

With its centralized system architecture, PacDrive 3 is the ideal solution for controlling a broad range of servo-driven production and packaging machines, as well as material handling equipment and robotics, using fully integrated, IEC 61131-3-compliant program structures.

General information on PacDrive 3

Highlights

For years, PacDrive control technology has allowed users to have synchronized multi-axial motion, PLC functionality, and robotic control on a single hardware platform. This open technology utilizing international standards is aimed at reducing hardware and software complexity.

Benefits of PacDrive 3

Improved efficiency

Minimize programming efforts and increase the software quality with modular programming concept with comprehensive application software libraries.
Motion simulation

Centralized calculation of all axis positions within the controller allows it to switch on the fly from real to virtual axes. Utilize motion testing/simulation without connecting drives or motors.
Easy device replacement

Electronic type plates and detailed communication for all servo drives/motors enable automatic parameterization, firmware replication, and diagnosis.
Fast commissioning

Automatic Sercos scan after changing machine configuration/restart. The controller recognizes all connected drives or motors and can activate or deactivate them automatically.

PacDrive 3 features

Facts about PacDrive 3

Scalable automation platform and scalable controller performance from 0 to 130 servo drives and robot axes.
Single controller solution for motion, PLC logic, and communication without additional hardware required.
One programming tool for the complete machine, IEC 61131-3-compliant programming design.
Software transferable between platforms.
Fully integrated Ethernet-based communication using Sercos for I/O, drive, and safe communication.
An open system supporting other field busses as well as TCP/IP communication.
Flexible multi-axis drive solutions; cabinet-based and servo integrated.
EcoStruxure™ Machine Expert-based tools supporting the engineering process, including safety programming/parameterizing, commissioning, and diagnostics.
Embedded safety approach with the safe logic controller, safe I/Os, safe drives, and safe communication.

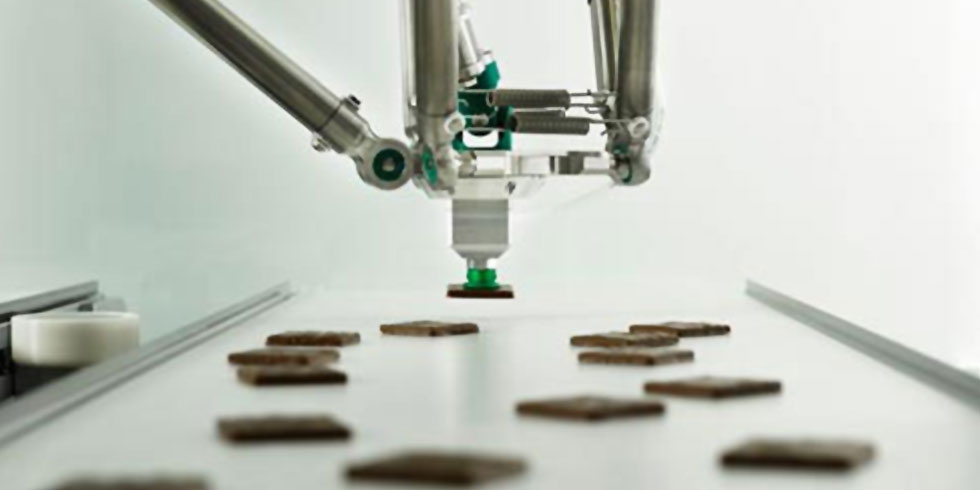

Robotic solutions (kinematic packages, including drives, electronics, and software).
