Can a heavy duty safety switch be bottom fed?

Product Line:
Heavy Duty Safety Switches

Resolution:
There is adequate space for line side conductors to enter the bottom endwall and loop up to the line side lugs. There is also adequate space for the load side conductors to loop up and exit through the top endwall. The switches cannot be backfed, however. The line side conductors may not be terminated on the load side lugs and vice versa.
The following is from Digest 176 showing relevant bending space available;

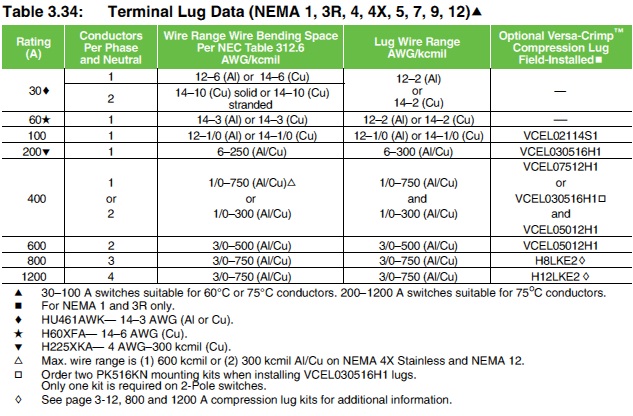

Wire Bending Space and Lug Information
