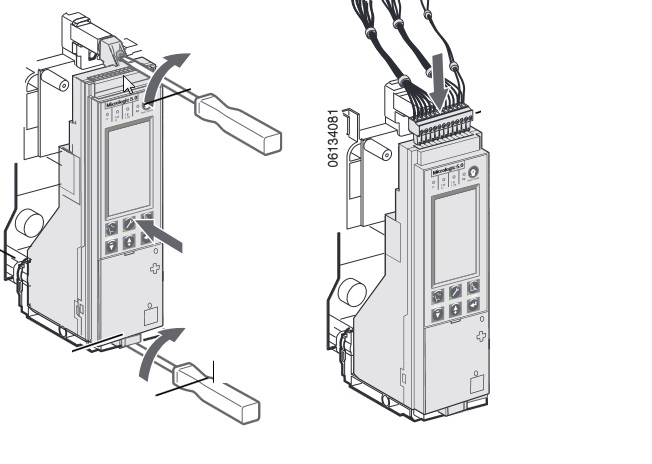

Can a PowerPact P and R frame breaker with a standard Micrologic trip unit be upgraded to a type A, P, or H trip unit?

Search FAQs

Product Line:
Circuit Breakers

Environment:
Electrical Distribution Equipment

Resolution:

Model	Protection	Cat. #
2.0 (IEC only)	LSO	S132R
3.0 (UL/ANSI only)	LI	S131A
5.0	LSI	S133A
2.0A (IEC only)	LSO	S142R
3.0A (UL/ANSI only)	LI	S141A
5.0A	LSI	S143A
6.0A	LSIG	S144A
5.0P	LSI	S163A
6.0P	LSIG	S164A
5.0H	LSI	S173A
6.0H	LSIG	S174A

For R frame and for P frame (excluding motorized, rotary handle, and drawout), they also need the following parts:
Connector S33100
External Voltage Sensing kit S64203 (P and H trip units only, if voltage sensing is required)
BCM S64205 (if modbus is required)

For P frame drawout, they need the following parts:
Connector S33101
External Voltage Sensing kit S64209 (P and H trip units only, if voltage sensing is required)
BCM S64206 (if modbus is required)

For P frame motorized, they need the following parts:
Connector S33100
External Voltage Sensing kit S64210 (P and H trip units only, if voltage sensing is required)
BCM S64207 (if modbus is required)

For P frame with rotary handle, they need the following parts:
Connector S33100
External Voltage Sensing kit S64210 (P and H trip units only, if voltage sensing is required)
BCM S64205 (if modbus is required)
