!!!Confidential ContentIssue:
Repair Parts

Product Line:
HD SS

Resolution:

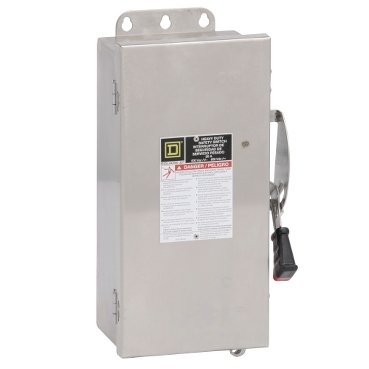

The repair parts for the H361DSWC, series F7 (F07) are as follows. No other parts are available.
-Line Base Assembly - 4056603950 (1 required; arc suppressor not included)
-Load Base Assembly - 4056604150 (1 required)
-Line and Load Base Mounting Screws - 4020515101 (3 for line, 2 for load)
-Arc Suppressor Assembly - 4056635550 (1 required)
-Arc Suppressor Mounting Screw - 4020514501 (1 required)
-Lug Assembly - 4025101652 (per lug)
-Lug Mounting Screw - 4020514202 (per lug)
-Mechanism Assembly - 4056646950 (NOTE: handle coupling, cover interlock defeat coupling, and lockplate gaskets may also need replacing)
-Handle Coupling - 4053922550
-Cover Interlock Defeat Coupling - 4056699750
-Handle Assembly - 4056779850 (also recommend replacing lockplate gaskets)
-Lockplate - 4056681201 (also recommend replacing lockplate gaskets)
-Lockplate Gasket - 4050322802 (2 required) - Obsolete. Replaced with 4050322803
-Lockplate Mounting Screw - 2194918121 (2 required)
-Rod/Linkage Assembly - 4056787050
-Receptacle - 2541000045
-Receptacle Mounting Screws - 4510280101
-Ground Lug - 4025101652 (3 required)
-Ground Lug Mounting Screw - 4020513503 (2 required)
-Fuse Pullers - FPK03 (1 required)

Released for:Schneider Electric Canada
