What is the part number for a replacement parts and accessories for Transformer EE30T151HCT and EE30T3H?
Issue:
What are catalog numbers for replacement enclosure parts for a 17D enclosure?
Product Line:
LV Transformers
Environment:
Applies to Low Voltage Transformers by SquareD/Schneider Electric
Cause:
External Enclosure parts are the most subject to physical damage
Resolution:
Replacement Parts and Accessories Encl 17D

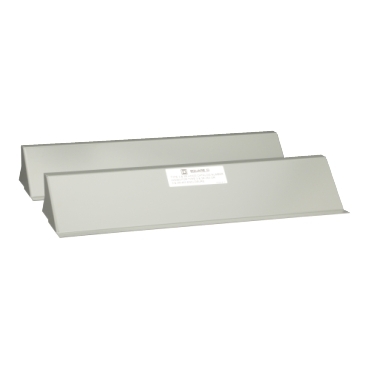

Weathershield WS363
Wall mounting bracket WMB361-362
Ceiling mounting bracket CMB363
Enclosure Parts
Top cover 4310191501
Front1 4310191601
Rear 4310191601
Sides (ends) 4310191701
Base 4310191401
CTA-ID : 2037054
What are catalog numbers for replacement enclosure parts for a 17D enclosure?
Product Line:
LV Transformers
Environment:
Applies to Low Voltage Transformers by SquareD/Schneider Electric
Cause:
External Enclosure parts are the most subject to physical damage
Resolution:
Replacement Parts and Accessories Encl 17D
Weathershield WS363
Wall mounting bracket WMB361-362
Ceiling mounting bracket CMB363
Enclosure Parts
Top cover 4310191501
Front1 4310191601
Rear 4310191601
Sides (ends) 4310191701
Base 4310191401
CTA-ID : 2037054
Released for: Schneider Electric Canada
