What is the difference between voltage code T1 and T2 as in 6T1F vs. 6T2F?

Issue:

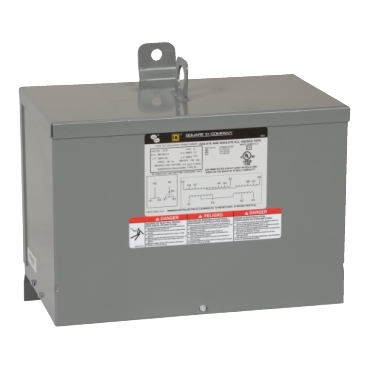

Epoxy Encapsulated Transformers

Product Line:
LV Transformers

Environment:
Applies to Low Voltage Transformers by SquareD/Schneider Electric

Cause:
Voltage Codes vary with Transformer catalog numbers

Resolution:


The 6T1F has no primary taps. The 6T2F has 2 5% BN taps. They both are 480 Delta to 208Y120V Tranformers.

Released for: Schneider Electric Canada
