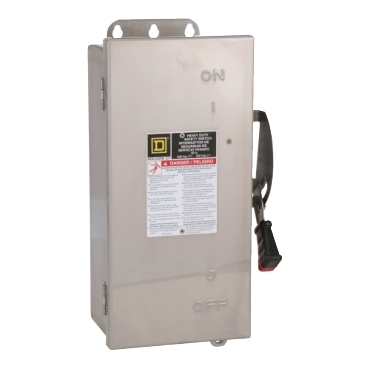

What are the repair parts for the HU361SS, series F6? (may be shown as F06)
Product Line:
Safety Switches
Resolution:
The repair parts for the HU361SS, series F6 (F06) are as follows. No other parts are available.
-Line Base Assembly - 4056642650 (arc suppressor not included)
-Line Base mounting screw - 4020516001 (3 required)
-Arc Suppressor Assembly - 4056669451
-Arc Suppressor mounting screw - 4020514501 (1 required)
-Lug Assembly - 4025101652 (per lugs)
-Lug Keps Nuts - 2342501701
-Mechanism Assembly - 4056610750 (NOTE: handle coupling, cover interlock defeat coupling, and lockplate gaskets may also need replacing)
-Handle Coupling - 4056699850
-Cover Interlock Defeat Coupling - 4056699750
-Handle Assembly - 4056699450 (also recommend replacing lockplate gaskets)
-Lockplate - 4056693201 (also recommend replacing lockplate gaskets)
-Lockplate Gasket - 4050322802 (2 required) (obsolete; replaced with 4050322803)
-Lockplate mounting screw - 2194918121 (2 required)
-Ground Lug - 4025101652 (2 required)
-Ground Lug Mounting Screw - 4020513503
Released for: Schneider Electric Canada
