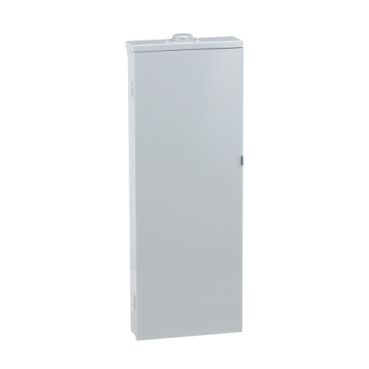

What are the repair parts for an HOM4080M200PRB, Series S04 load center?
Issue:
current design repair parts
Prouduct line:
Homeline load centers
Resolution:
Only the parts listed below are considered field replaceable.
Cover - 4056317250 (includes hinges attached to left side of cover)
Cover Mounting Screw - 2142217101 (2 required)
Cover Latch - 4056314701, Latch Rivet - 2410212160 (attached to right side wall of enclosure)
Interior Trim with Labels - 4056314201K (remove knockouts if needed)
Interior Trim Mounting Screw - 4020513001K
Interior Assembly - HOM4080M200PRBI (main breaker not included)
Main Breaker - QOM2200VH
Neutral Bonding Screw - 4028345850K
Note: Cover does not have labels applied.
Released for: Schneider Electric Canada
