What is the minimum mounting distance between operators on the 22mm pushbutton line?
Issue:
Identifying the mounting distance between 22mm operators
Product Line:
Hamony XB4, XB5 Push Buttons
Environment:
Push Buttons and Operator Interface
Resolution:

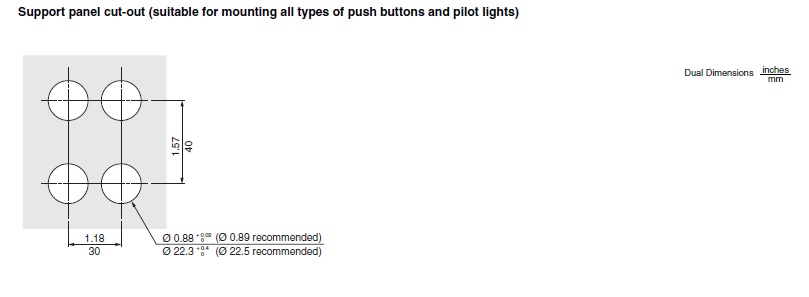

40mm top to bottom, 30mm side to side (all measurements from center to center of 22mm hole)
Dimensional information is attached.
Identifying the mounting distance between 22mm operators
Product Line:
Hamony XB4, XB5 Push Buttons
Environment:
Push Buttons and Operator Interface
Resolution:
40mm top to bottom, 30mm side to side (all measurements from center to center of 22mm hole)
Dimensional information is attached.
Released for: Schneider Electric Canada
