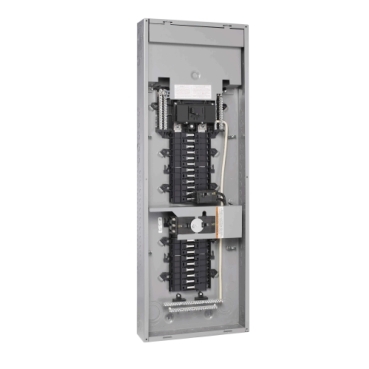

What are the repair parts for the QOGP3P604436125?
Issue:
Design Repair Parts
Product Line:
Canadian QO load centers
Resolution:
Only the parts listed below are considered field replaceable.
Cover - CQOC44UC
Main Circuit Breaker - QOM2125VHL
Main Circuit Breaker Keps Nuts - 2342702001 (2 required)
Factory installed 2 pole, 60amp breaker - QO260
Factory installed 3 pole, 60amp breakers - QO360
Service Entrance Barrier - 4055995901 (must also order service label 4027272601 and add a note to have it installed on the barrier at the factory)
Indoor Cover Mounting Screw bag assembly - 4028342250 (contains 6 screws)
Indoor Cover Door Hinge - 4028356450K (contains parts to repair one hinge)
Door Latch Kit - 4020284450K
Ground bar - L79A253
Ground bar Mounting screw - 4020594801 (one per bar)
Design Repair Parts
Product Line:
Canadian QO load centers
Resolution:
Only the parts listed below are considered field replaceable.
Cover - CQOC44UC
Main Circuit Breaker - QOM2125VHL
Main Circuit Breaker Keps Nuts - 2342702001 (2 required)
Factory installed 2 pole, 60amp breaker - QO260
Factory installed 3 pole, 60amp breakers - QO360
Service Entrance Barrier - 4055995901 (must also order service label 4027272601 and add a note to have it installed on the barrier at the factory)
Indoor Cover Mounting Screw bag assembly - 4028342250 (contains 6 screws)
Indoor Cover Door Hinge - 4028356450K (contains parts to repair one hinge)
Door Latch Kit - 4020284450K
Ground bar - L79A253
Ground bar Mounting screw - 4020594801 (one per bar)
Released for: Schneider Electric Canada
