What does "MICROLOGIC DOWNLOAD LAYER" indicate on a Micrologic P or H trip unit?

Issue:
Trip  unit message meaning
Product Line:
Molded Case Circuit Breaker Trip Units
Resolution:
The trip unit has to be replaced when the display shows the message "MICROLOGIC DOWNLOAD LAYER".
This indicates a firmware issue or malfunction.

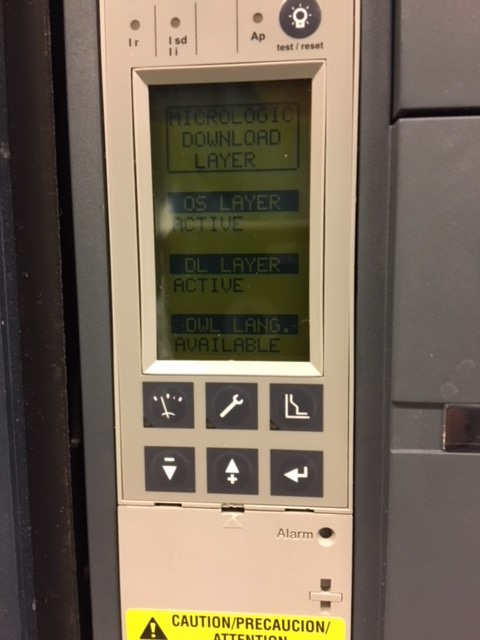

Micrologic download layer screenshot

Released for: Schneider Electric Canada
