How to field install electrical accessories onto a Multi-9 product
Issue:
How to attach an auxiliary switch, alarm switch, shunt trip, or undervoltage trip to Multi-9 products.
Product Line:
Circuit Breakers
Resolution:

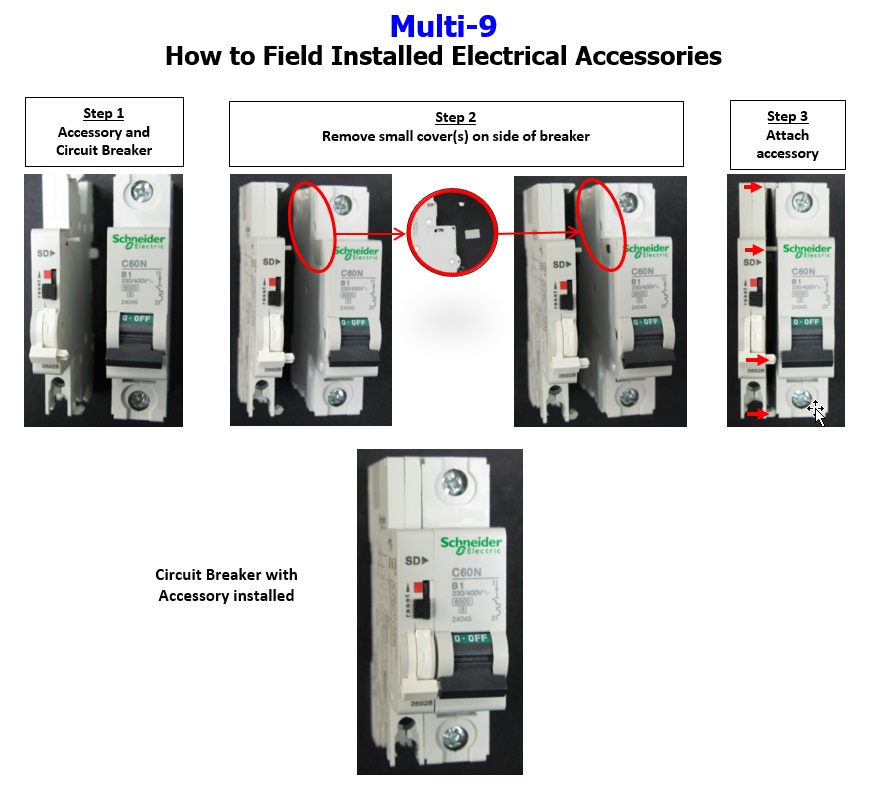

To attach an auxiliary switch, alarm switch, shunt trip, or undervoltage trip to a Multi-9 product, first remove the small cover(s) on the side of the breaker. Then snap the accessory onto the breaker as shown in the pictures below. NOTE: All accessories do not necessarily fit onto all Multi-9 products. Consult the current online Multi-9 catalog at this link: LVCATM9OEM_EN.
How to attach an auxiliary switch, alarm switch, shunt trip, or undervoltage trip to Multi-9 products.
Product Line:
Circuit Breakers
Resolution:
To attach an auxiliary switch, alarm switch, shunt trip, or undervoltage trip to a Multi-9 product, first remove the small cover(s) on the side of the breaker. Then snap the accessory onto the breaker as shown in the pictures below. NOTE: All accessories do not necessarily fit onto all Multi-9 products. Consult the current online Multi-9 catalog at this link: LVCATM9OEM_EN.
Released for: Schneider Electric Canada
