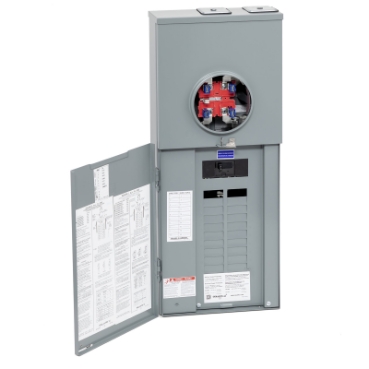

What are the repair parts for an RC2040M150CH, Series M01?
Issue:
Repair parts
Product Line:
CSED
Resolution:
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED BELOW.
The parts listed here are the only parts considered field replaceable:
Meter Cover - 4056167850 (includes latch)
Load Center Cover - 4056157550 (includes hinges and latch)
Load Center Cover Mounting Screws - (4) 2159417121
Dead Front Interior Trim - 4056173901
Dead Front Interior Trim Mounting Screws - 4020513001K (contains 10 screws; only 2 are required)
Load Center Interior - 4056162050 (main breaker not included)
Load Center Interior Mounting Screws - (6) 2153217161
Main Breaker - QOM2150VH
Main Breaker Mounting Hardware - (2) 2342702001
Meter Base Assembly - 4056190050 (includes meter base, line side lugs, meter jaws, meter jaw blade guides, and horn bypasses)
Meter Jaw - (4) 7329794850
Meter Jaw Mounting Keps Nuts - (4) 2342702001
Meter Jaw Blade Guide - (4) 4052761901
Line Side Horn Bypasses - (2) 4056150901
Load Side Horn Bypass (Left) - 4052783101
Load Side Horn Bypass (Right) - 4052783102
Fifth Jaw Assembly - 4052797750
Fifth Jaw Assembly Mounting Screw - 2153217161
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED ABOVE.
Repair parts
Product Line:
CSED
Resolution:
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED BELOW.
The parts listed here are the only parts considered field replaceable:
Meter Cover - 4056167850 (includes latch)
Load Center Cover - 4056157550 (includes hinges and latch)
Load Center Cover Mounting Screws - (4) 2159417121
Dead Front Interior Trim - 4056173901
Dead Front Interior Trim Mounting Screws - 4020513001K (contains 10 screws; only 2 are required)
Load Center Interior - 4056162050 (main breaker not included)
Load Center Interior Mounting Screws - (6) 2153217161
Main Breaker - QOM2150VH
Main Breaker Mounting Hardware - (2) 2342702001
Meter Base Assembly - 4056190050 (includes meter base, line side lugs, meter jaws, meter jaw blade guides, and horn bypasses)
Meter Jaw - (4) 7329794850
Meter Jaw Mounting Keps Nuts - (4) 2342702001
Meter Jaw Blade Guide - (4) 4052761901
Line Side Horn Bypasses - (2) 4056150901
Load Side Horn Bypass (Left) - 4052783101
Load Side Horn Bypass (Right) - 4052783102
Fifth Jaw Assembly - 4052797750
Fifth Jaw Assembly Mounting Screw - 2153217161
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED ABOVE.
