Issue:

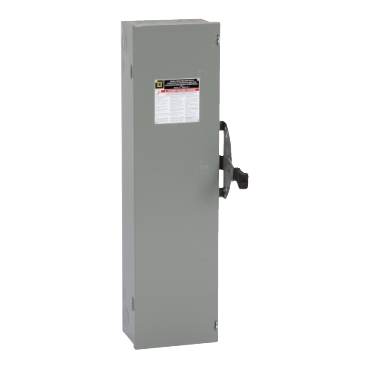

DT363, series F5 field replaceable parts.
Product Line:
Safety Switch
Environment:
Double Throw Safety Switch
Cause:
Maintenance
Resolution:
The repair parts for the DT363, series F5 (F05) are as follows. No other parts are available.
-Line Base - 4056775150 (one each upper and lower; order arc suppressor and wire assembly separately)
-Line Base mounting screws - 4020515101 (requires 3 per line base)
-Load Base - 4056604650 (one each upper and lower; order lugs and wire assembly separately)
-Load Base mounting screws - 4020515101 (requires 2 per load base)
-Arc Suppressor Assembly - 4056635550 (requires 1 per line base; obsolete, no longer available, replaced by NNZ51874)
-Arc Suppressor mounting screw - 4020514501 (requires 1 per arc suppressor)
-Wire Assembly - 4056621050 (requires 1 per phase; includes cable factory connected mechanical lug at one end and at other end a crimped connector; use mounting screws of line and load lugs)
-Line and Load Lug Assembly - 4025101851 (per lug - line, load)
-Line, Load Lug mounting screw - 4020514202
-Ground Lug - 4025101851 (per lug)
-Ground Lug mounting screw - 4020514801
-Switch Mechanism - 4056646950 (each for upper and lower)
-Linkage Assembly - 4056614950 (links together upper and lower switch mechanisms)
-Linkage Assembly mounting screws - 2299940562 (requires 7)
-Handle - 4056688750
-Lockplate - 4056673301
-Lockplate mounting screws - 2299940562
-Cover Latch - 4056607201 (each for upper and lower; also requires cover latch spring)
-Cover Latch Spring - 4022304301 (each for upper and lower; also requires cover latch)
