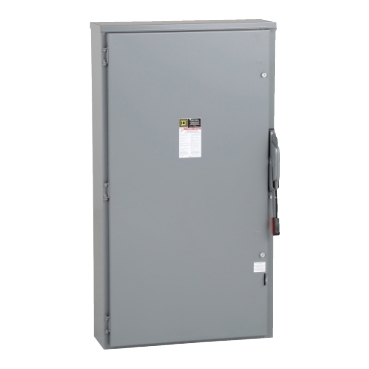

What are the repair parts for an H226NR, Series E2, E4, or E5?
Issue:
Repair parts
Product Line:
Heavy Duty Safety Switch
Resolution:
The parts listed here are the only field replaceable parts.
Complete interior - HN226NE2 (includes line and load base assembly, neutral assembly, arc suppressor assembly, box insulator, line phase insulators, and mounting hardware)
Line base assembly - 4055218550SEL (2 required; arc suppressor assembly not included)
Load base assembly - 4055218750SEL (2 required)
Arc suppressor assembly - 4051270850SEL (2 required)
Lug assembly - 4405044601 (2 required per base assembly)
Neutral assembly - H600SN
Line base phase insulator - 4051201401 (1 required)
Load base phase insulator - 4055219101 (1 required)
Line & load base mounting screws - 4020600901 (2 required per base assembly)
Handle assembly - 4051217250SEL
Door thumb screw and retainer - 4405043401 & 4405043301 (series E5 only)
Handle knob kit - Series E2 is 4401142750, Series E4 and E5 is 4028343550
Neutral bonding strap - 4028300750SEL
Cross Arm Insulator – (2) 4055217701 (left and right side pieces); (1) 4055217801 (center piece); (1) 4055215701 (dust shield – retainer for insulators)
Repair parts
Product Line:
Heavy Duty Safety Switch
Resolution:
The parts listed here are the only field replaceable parts.
Complete interior - HN226NE2 (includes line and load base assembly, neutral assembly, arc suppressor assembly, box insulator, line phase insulators, and mounting hardware)
Line base assembly - 4055218550SEL (2 required; arc suppressor assembly not included)
Load base assembly - 4055218750SEL (2 required)
Arc suppressor assembly - 4051270850SEL (2 required)
Lug assembly - 4405044601 (2 required per base assembly)
Neutral assembly - H600SN
Line base phase insulator - 4051201401 (1 required)
Load base phase insulator - 4055219101 (1 required)
Line & load base mounting screws - 4020600901 (2 required per base assembly)
Handle assembly - 4051217250SEL
Door thumb screw and retainer - 4405043401 & 4405043301 (series E5 only)
Handle knob kit - Series E2 is 4401142750, Series E4 and E5 is 4028343550
Neutral bonding strap - 4028300750SEL
Cross Arm Insulator – (2) 4055217701 (left and right side pieces); (1) 4055217801 (center piece); (1) 4055215701 (dust shield – retainer for insulators)
Released for: Schneider Electric Canada
