Can the old Series 300 (Automatic and Non-automatic) with Group 1 controller use the new Group G controller?

How can we help you today?

Answer: Yes. Series 300 transfer switches that have the Group 1 controllers can be retrofitted with the Group G controller.

Purchase one of the Group G Controller Retrofit Kits below that matches the existing Series 300 transfer switch voltage rating.

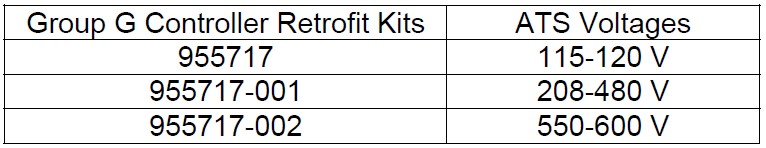

Group G Controller Retrofit Kit Part Numbers

The Retrofit (Conversion) Kits include:

Group G Controller
Transfer Switch Dual Harness Adapter
Door controls to fit into original door opening (user interface & display and ribbon cable)
Group 1 to Group G Retrofit Kit Instructions
Group G Controller User’s Guide

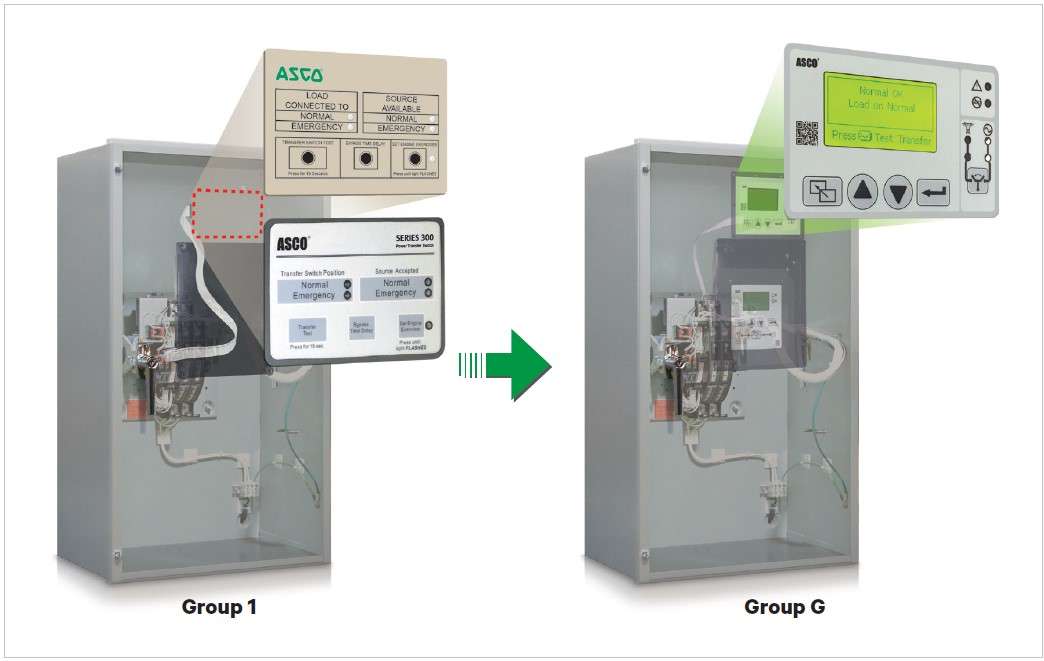

Group 1 Group G Retrofit Transfer Switch Image Comparison

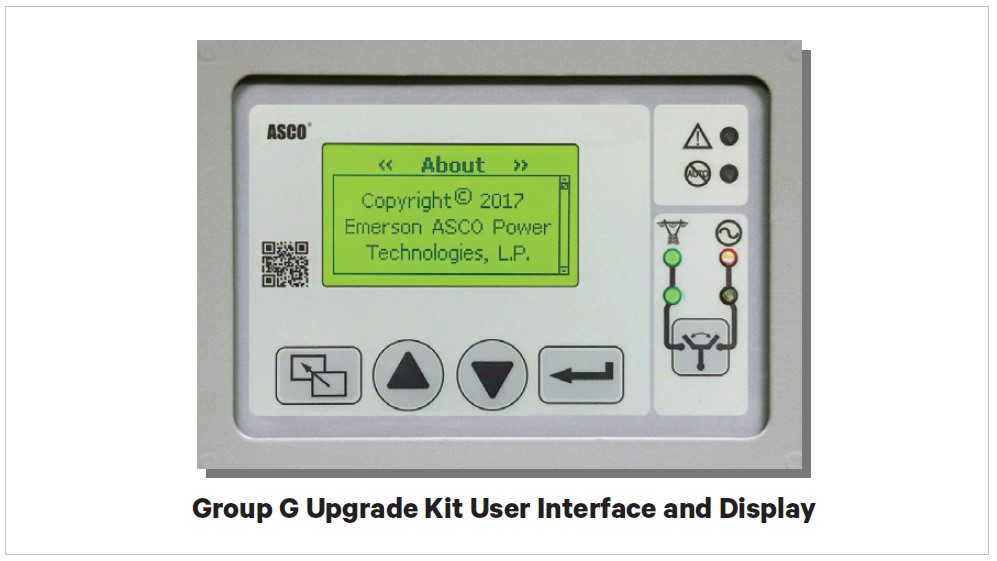

Group G Upgrade/Retrofit Kit User Interface and Display

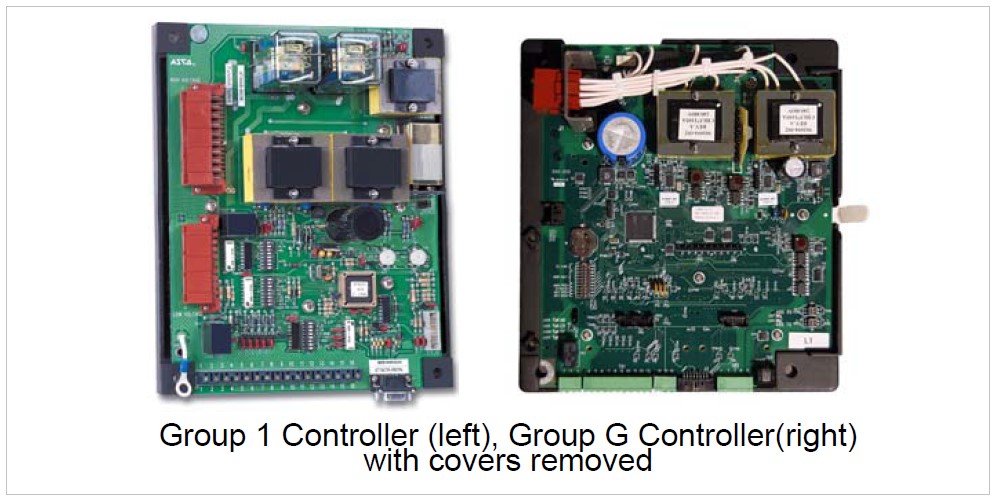

Group 1 Group G - Covers removed - Image Comparison
