What are the part number of the terminal blocks needed for the modules of the Modicon MC80 controllers?
Issue:
Do not know which is the part number of the terminal blocks needed for my MC80 controller.
Product Line:
BMKC8020310, BMKC8020301, BMKC8030311, MC80 PLC
Resolution:

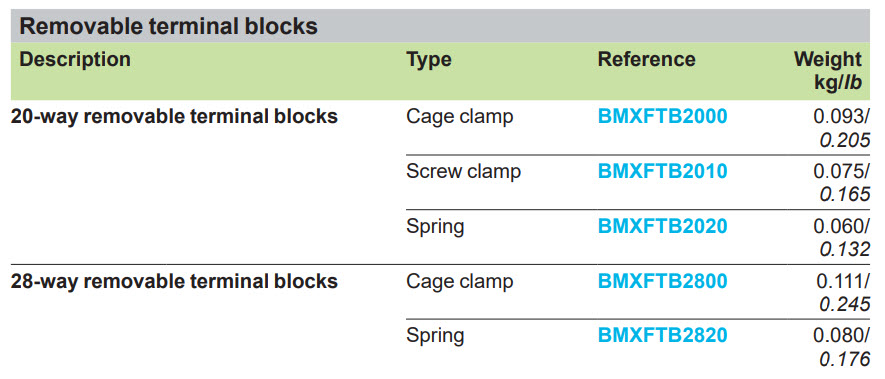

For each of the available MC80 controllers, the required terminal blocks, and the amount of each them, is as follows:
► BMXC8020301
1x - BMXFTB20xx
1x - BMXFTB28xx
► BMKC8020310
1x - BMXFTB20xx
1x - BMXFTB28xx
► BMKC8030311
1x - BMXFTB20xx
2x - BMXFTB28xx
If this FAQ did not solve your issue, you can chat with us at chat with us or e-mail us at customer.services@se.com to create a case with our Technical Support Team.
If you are not located in North America, please contact your local Customer Care Center for assistance:
Support | Schneider Electric Global (se.com)
