What is the default password for EcoStruxure Panel Server?

Issue

The user may need to know what the EcoStruxure Panel Server password is during the initial installation.

Product Line

EcoStruxure Panel Server Entry (PAS400)

EcoStruxure Panel Server Universal (PAS600, PAS600L )

EcoStruxure Panel Server Wired by Design (PAS600LWD, PAS600PWD)

EcoStruxure Panel Server Advanced (PAS800, PAS800L, PAS800P series)

Environment

Installation – Configuration

Cause

EcoStruxure Panel Server first installation or after factory reset.

Resolution

From firmware version v002.005.000 onward, all EcoStruxure Panel Server (PAS) models include a default Username: SecurityAdmin and Password: AAAAAAAA. These credentials are required during the initial installation or after a factory reset, but they can be changed once the setup is complete. Refer to the User Guide for additional details.

In general, the PAS requires the default username and password when accessing the device locally. However, when configuring Data Publication settings or managing Cybersecurity features, the default credentials must be changed to ensure proper security.

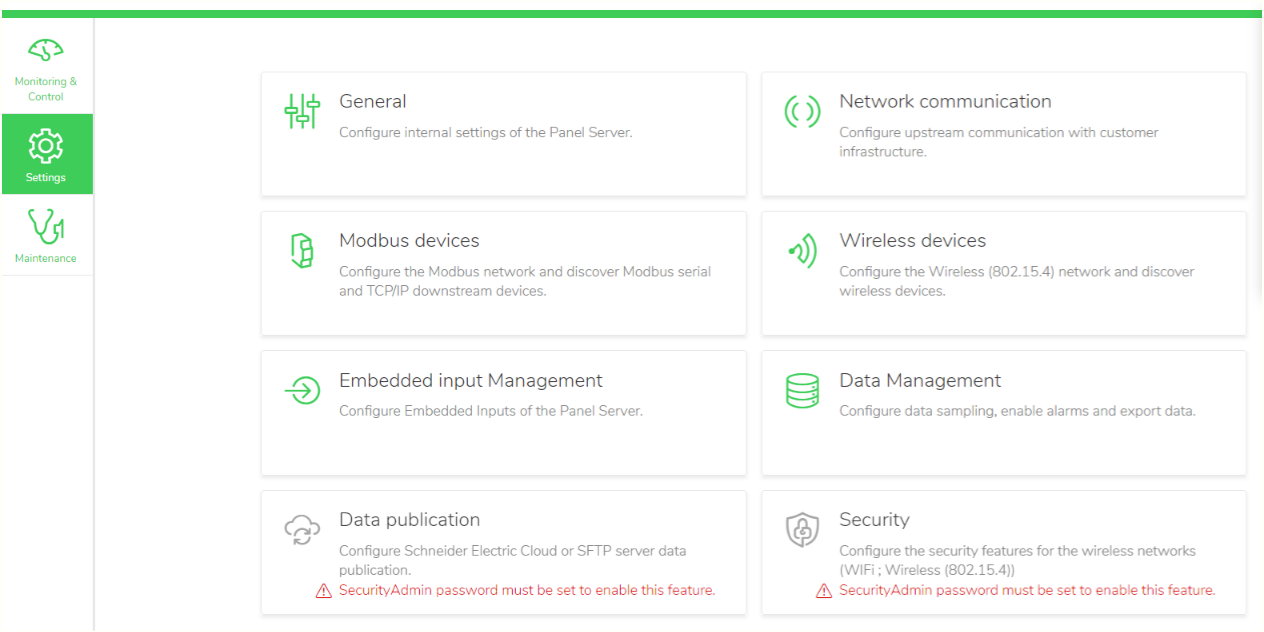

Figure 1: Initial commissioning

This can initially be completed using one of the following methods:

• EcoStruxure Power Commission (EPC) software. Download here.

• The EcoStruxure Panel Server (PAS) homepage via its embedded web interface.

The EcoStruxure Panel Server documentation can be found in the following links:

• FAQ000239552
• HERE

If you are unable to log into the webpage due to a lost or forgotten password, refer to the User Guide under “Resetting to Factory Settings” for instructions.

Released for: Schneider Electric Canada
