What is the mechanical interlock for 2 avatar starters TPRST?

Issue:
How to interlock 2 Tesys Island avatar starters?

Product Line:
Motor Management system Tesys Island

Environment:
IEC Contactors and Starters

Resolution:
1) Kit for assembling to TPRST or TPRSS 009-038 Starters : LAD9R1

TPRST009 TPRSS009 mechanical interlock

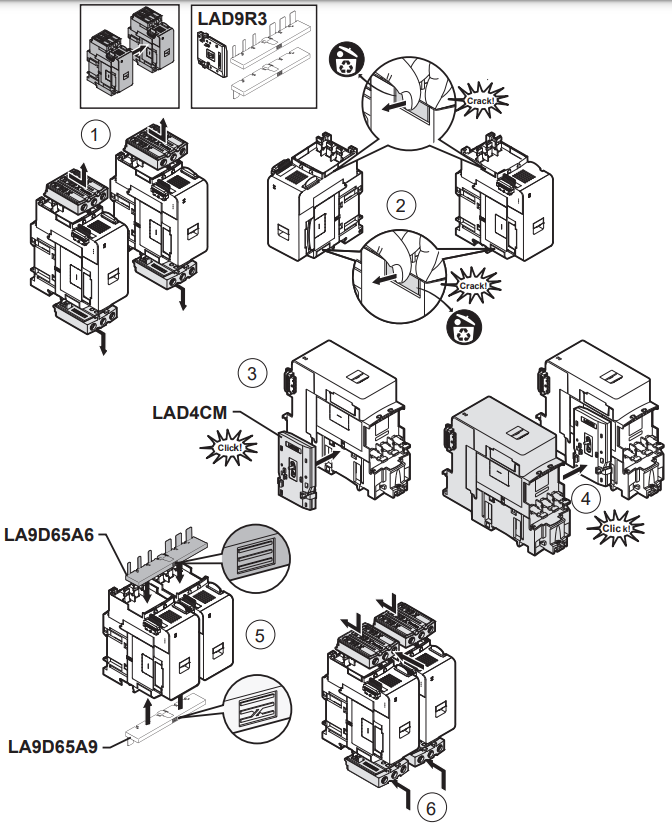

2) Kit for assembling to TPRST or TPRSS 065-080 Starters : LAD9R3


TPRST065 TPRSS065 mechanical interlock

This information can be found on the instruction sheet of each avatar.
