Tesys Island, this avatar As configured cannot be added due to capacity constraings of the island
Issue:
I cannot add an avatar to the configuration of my Island in Somove

This message shows up:

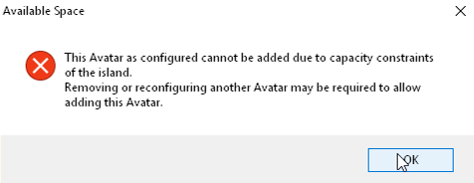

Many avatars

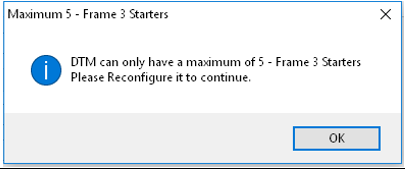

Max size 3 starters


Product line:
IEC Contactors and Starters

Environment:
Tesys Island Motor management solution

Solution:
As the messages state, there is something about your configuration which means it is too large/invalid.  As a reminder, the constraints are:
  • Maximum of 21 bus devices, (20 starters + 1 VIM or 20 starters + 1 SIM).  21 starters is invalid
  • Maximum of 5 Frame 3 devices active (a reverser avatar counts as 1 frame 3, because only one is ever on at a given moment)
Maximum of ~15 avatars (depends on specific avatars) with Profibus

Suggest to remove an avatar, remove an IO module, or split up into two islands if this constraint arrives

Schneider Electric Canada
