Issue:
What are the Part numbers and Dimensions for the 9070 Control Transformers (CPT) with leads?

Product Line:
Control Power Transformer

Environment:
Application

Cause:
Product features

Resolution:
For a 300VA leaded CPT transformer, the base part number would be 9070KL300. The Voltage code suffix of the transformer finishes the part number.

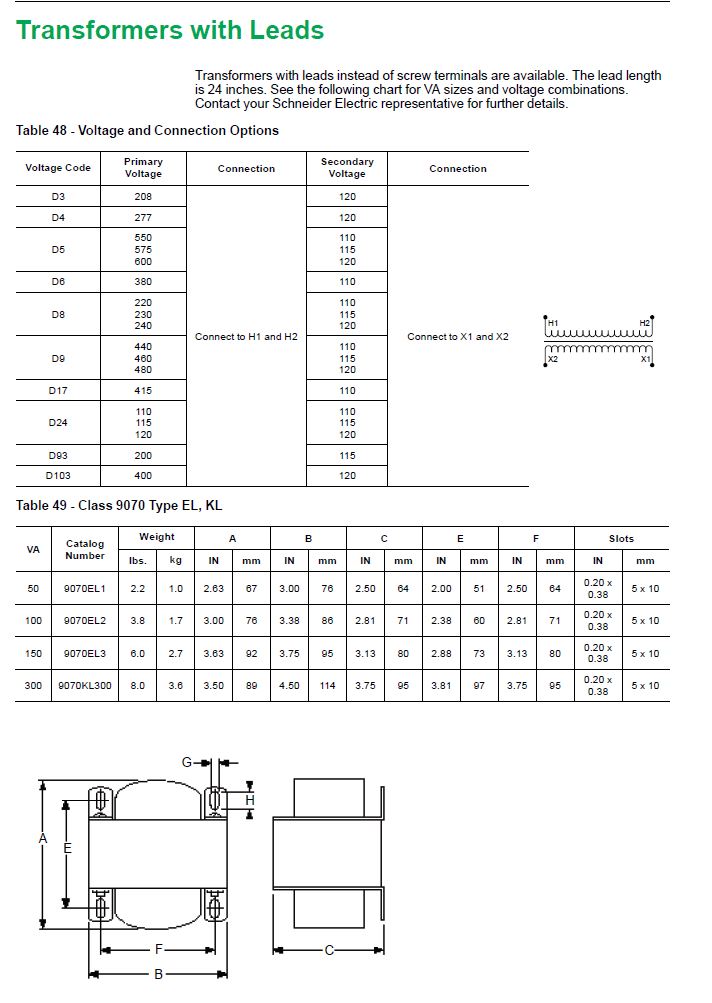

For example, a 480 volt primary and 120 volt secondary, would have a part number 9070KL300D9. See attached listing for lower VA transformers and their dimensions.
