Choosing residential Surge Protection Devices (SPDs) and understanding their variances.
Product Line:
Surge Protective Devices (SPDs)
Environment:
Residential SPDs
Resolution:
Internally Mounted Surge Protective Devices
- QO2175SB QO Surgebreaker - NON-plug-on neutral compatible securing up to a 22.5 kA surge current per phase.
- 3 Year Warranty - $10,000 limited downstream equipment protection.
- QO250PSPD QO plug-on neutral (PoN) - compatible SPD securing up to a 50 kA surge current rating per phase.
- 5 Year Warranty - $50,000 downstream equipment protection.
- HOM2175SB Homeline Surgebreaker - NON-plug-on neutral compatible securing up to a 22.5 kA surge current rating per phase.
- 3 Year Warranty - $10,000 limited downstream equipment protection.

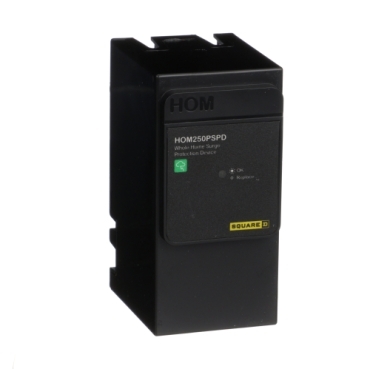

- HOM250PSPD Homeline plug-on neutral (PoN) - compatible SPD securing up to a 50 kA surge current rating per phase.
- 5 Year Warranty - $50,000 downstream equipment protection.
Nipple Mounted Surge Protective Devices (Compatible with all brands of load centers)
- HEPD50 - Home Electronics Protective Device securing up to a 50 kA surge current rating per phase.
- 3 Year Warranty - $50,000 downstream equipment protection.
- HEPD80 - Home Electronics Protective Device securing up to a 80 kA surge current rating per phase.
- 5 Year Warranty - $75,000 downstream equipment protection.
Externally mounted Surgebreaker Plus Whole House Surge Protective Device (Compatible with all brands of load centers)
- SDSB80111 - Sophisticated surge protective device that protects your entire home, including cable, ethernet & telephone lines. This device provides an 80 kA surge current rating per phase.
- 5 Year Warranty - $100,000 downstream equipment protection.
- Warranty details for QO250PSPD & HOM250PSPD can be found on pages 6-8.
- Warranty details for QO2175SB & HOM2175SB can be found on pages 5-6.
- Warranty details for HEPD80 / HEPD80C, HEPD50 / HEPD50C, & HEPD25 / HEPD25C can be found on pages 10-12.
- Warranty details for SDSB80111.
Surge Capacity Rating Scale - Residential SPD
