Issue:
What are the replacement components for IMA series Surge Protective Devices?
Product Line:
Surge Protective Devices (SPDs)
Environment:
Type IMA surge protective devices.
Cause:
Replacement or Repair Parts
Resolution:
To find the right replacement parts for your IMA series Surge Protective Devices (SPDs), refer to the Replacement Component Selector Table provided below. You can also find an example of a typical product label and catalog number at the end of this article.
Replacement Component Matrix
Surgelogic Label
To locate the part number for your SPD, find a white Surgelogic sticker inside your SPD. Usually, you can find this sticker on the sidewalls or on the door of the SPD. The label will resemble the following:
What are the replacement components for IMA series Surge Protective Devices?
Product Line:
Surge Protective Devices (SPDs)
Environment:
Type IMA surge protective devices.
Cause:
Replacement or Repair Parts
Resolution:
To find the right replacement parts for your IMA series Surge Protective Devices (SPDs), refer to the Replacement Component Selector Table provided below. You can also find an example of a typical product label and catalog number at the end of this article.
Replacement Component Matrix
| Catalog Number | Peak Surge Current | Module Catalog Number "A" Phase | Module Catalog Number "B" Phase | Module Catalog Number "C" Phase | Diagnostic Cable (3 per kit) | Front Display (NEMA 1 SPDs only) |
| TVS1IMA12P | 120kA | MA1IMA12 | N/A | MA1IMA12 | TVS36PCK | TVS1DSPHC |
| TVS1IMA16P | 160kA | MA1IMA16 | N/A | MA1IMA16 | TVS36PCK | TVS1DSPHC |
| TVS1IMA24P | 240kA | MA1IMA24 | N/A | MA1IMA24 | TVS36PCK | TVS1DSPHC |
| TVS2IMA12P | 120kA | MA1IMA12 | MA1IMA12 | MA1IMA12 | TVS36PCK | TVS3DSPHC |
| TVS2IMA16P | 160kA | MA1IMA16 | MA1IMA16 | MA1IMA16 | TVS36PCK | TVS3DSPHC |
| TVS2IMA24P | 240kA | MA1IMA24 | MA1IMA24 | MA1IMA24 | TVS36PCK | TVS3DSPHC |
| TVS3IMA12P | 120kA | MA1IMA12 | MA3IMA12 | MA1IMA12 | TVS36PCK | TVS3DSPHC |
| TVS3IMA16P | 160kA | MA1IMA16 | MA3IMA16 | MA1IMA16 | TVS36PCK | TVS3DSPHC |
| TVS3IMA24P | 240kA | MA1IMA24 | MA3IMA24 | MA1IMA24 | TVS36PCK | TVS3DSPHC |
| TVS4IMA12P | 120kA | MA4IMA12 | MA4IMA12 | MA4IMA12 | TVS36PCK | TVS3DSPHC |
| TVS4IMA16P | 160kA | MA4IMA16 | MA4IMA16 | MA4IMA16 | TVS36PCK | TVS3DSPHC |
| TVS4IMA24P | 240kA | MA4IMA24 | MA4IMA24 | MA4IMA24 | TVS36PCK | TVS3DSPHC |
| TVS8IMA12P | 120kA | MA8IMA12 | MA8IMA12 | MA8IMA12 | TVS36PCK | TVS3DSPHC |
| TVS8IMA16P | 160kA | MA8IMA16 | MA8IMA16 | MA8IMA16 | TVS36PCK | TVS3DSPHC |
| TVS8IMA24P | 240kA | MA8IMA24 | MA8IMA24 | MA8IMA24 | TVS36PCK | TVS3DSPHC |
| TVS1IMA12PC | 120kA | MA1IMA12 | N/A | MA1IMA12 | TVS36PCK | TVS3DSPHC |
| TVS1IMA16PC | 160kA | MA1IMA16 | N/A | MA1IMA16 | TVS36PCK | TVS3DSPHC |
| TVS1IMA24PC | 240kA | MA1IMA24 | N/A | MA1IMA24 | TVS36PCK | TVS3DSPHC |
| TVS2IMA12PC | 120kA | MA1IMA12 | MA1IMA12 | MA1IMA12 | TVS36PCK | TVS3DSPHC |
| TVS2IMA16PC | 160kA | MA1IMA16 | MA1IMA16 | MA1IMA16 | TVS36PCK | TVS3DSPHC |
| TVS2IMA24PC | 240kA | MA1IMA24 | MA1IMA24 | MA1IMA24 | TVS36PCK | TVS3DSPHC |
| TVS3IMA12PC | 120kA | MA1IMA12 | MA3IMA12 | MA1IMA12 | TVS36PCK | TVS3DSPHC |
| TVS3IMA16PC | 160kA | MA1IMA16 | MA3IMA16 | MA1IMA16 | TVS36PCK | TVS3DSPHC |
| TVS3IMA24PC | 240kA | MA1IMA24 | MA3IMA24 | MA1IMA24 | TVS36PCK | TVS3DSPHC |
| TVS4IMA12PC | 120kA | MA4IMA12 | MA4IMA12 | MA4IMA12 | TVS36PCK | TVS3DSPHC |
| TVS4IMA16PC | 160kA | MA4IMA16 | MA4IMA16 | MA4IMA16 | TVS36PCK | TVS3DSPHC |
| TVS4IMA24PC | 240kA | MA4IMA24 | MA4IMA24 | MA4IMA24 | TVS36PCK | TVS3DSPHC |
| TVS8IMA12PC | 120kA | MA8IMA12 | MA8IMA12 | MA8IMA12 | TVS36PCK | TVS3DSPHC |
| TVS8IMA16PC | 160kA | MA8IMA16 | MA8IMA16 | MA8IMA16 | TVS36PCK | TVS3DSPHC |
| TVS8IMA24PC | 240kA | MA8IMA24 | MA8IMA24 | MA8IMA24 | TVS36PCK | TVS3DSPHC |

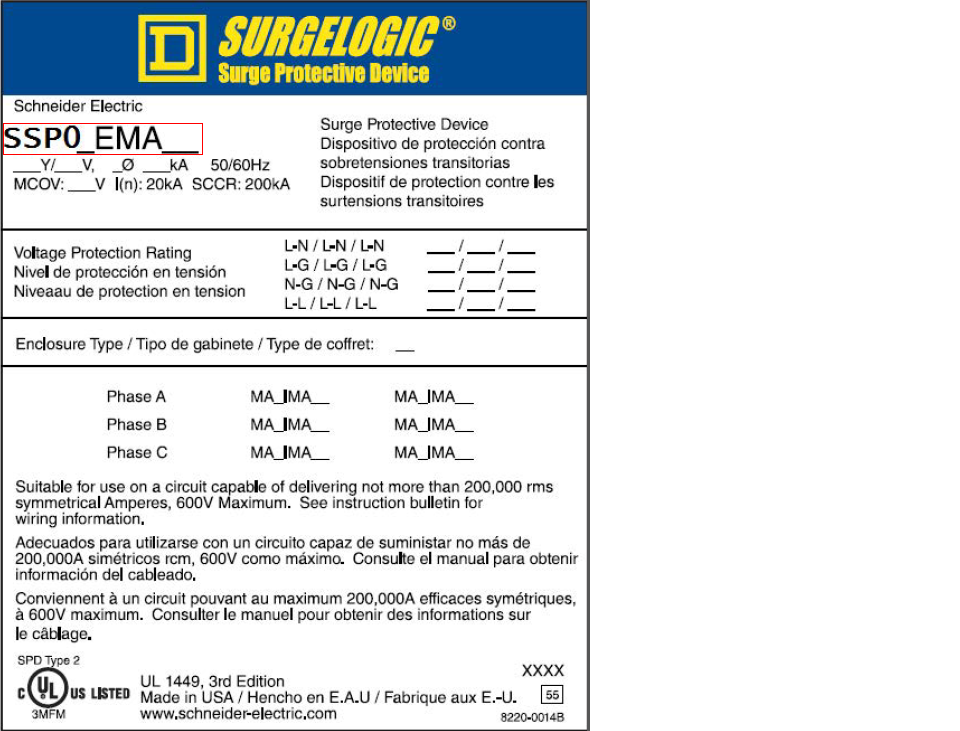

Surgelogic Label
To locate the part number for your SPD, find a white Surgelogic sticker inside your SPD. Usually, you can find this sticker on the sidewalls or on the door of the SPD. The label will resemble the following:
