To display motor RPM or motor speed on the display of ATV320 drive, set the below parameter in monitoring menu:

[MONIT. MOTOR] - Spd [Motor speed] rpm Motor speed in rpm. (Estimated value)

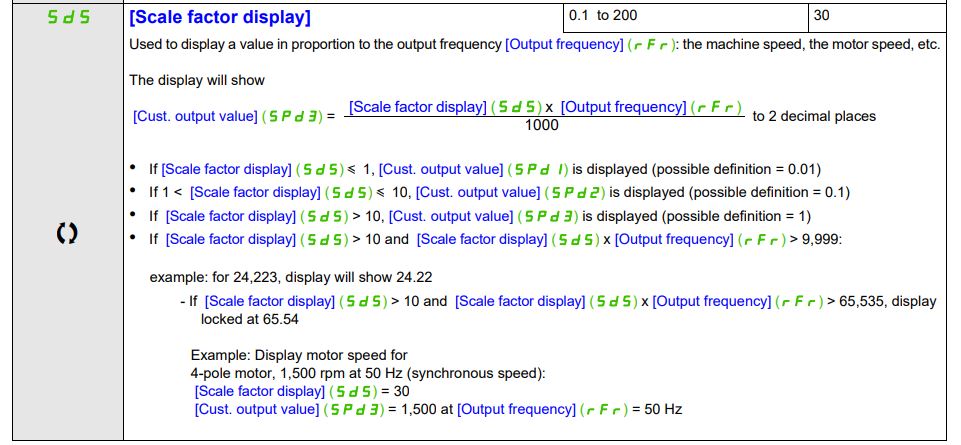

Calculated value of motor RPM based on output frequency is saved in parameter  SdS [Scale factor display].

Check the attachment.
