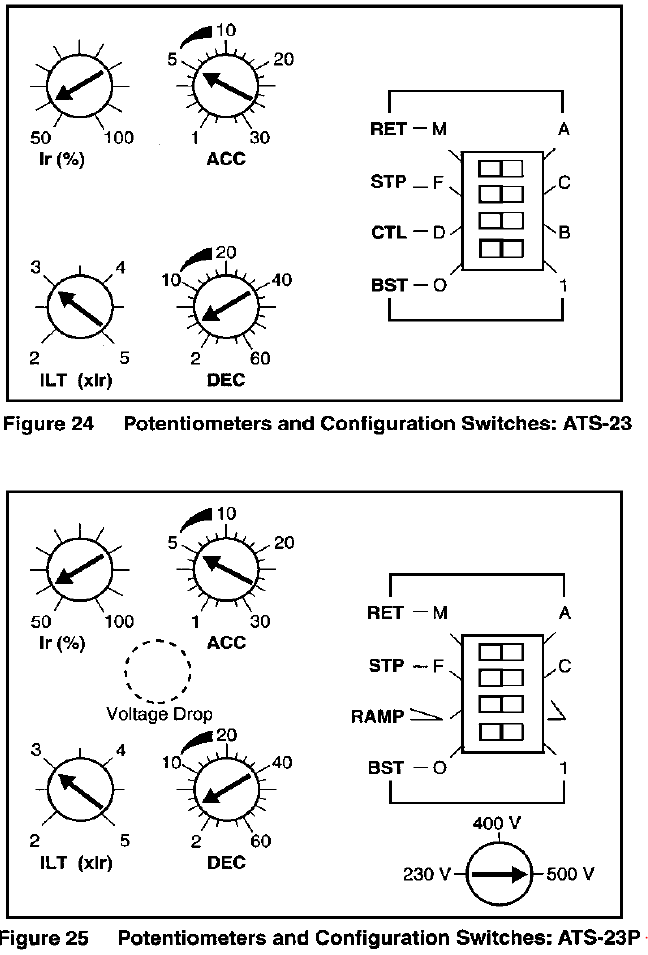

Figures above confirm the adjustment values on the ATS23 softstart.

IR: torque boost

ACC: acceleration

ILT: Current limit % based on motor FLA

DEC: deceleration

Dipswitches indicate type of stop if applicable.
