How to Identify the 9001K Selector Switch Part number?

Issue:

There is no label nor marking for the part number, unable to identify an existing 9001K/SK selector switch

Product Line:

9001K / 9001SK Selector Switches

Environment:

Push Buttons and Operator Interface

Resolution:

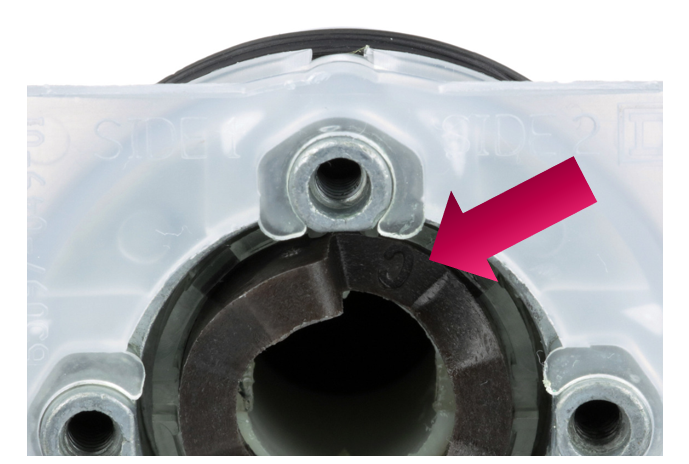

1. The important step is to identify the cam code located behind the selector switch head. Please refer to the picture below.

2. The switch features also needs to be determined:

- metal or plastic ring nut

- maintained or momentary

- knob or key

3. Finally, identify the part number from the list in the catalog or Schneider Electric Digest.
