For compact decentralised motion solutions

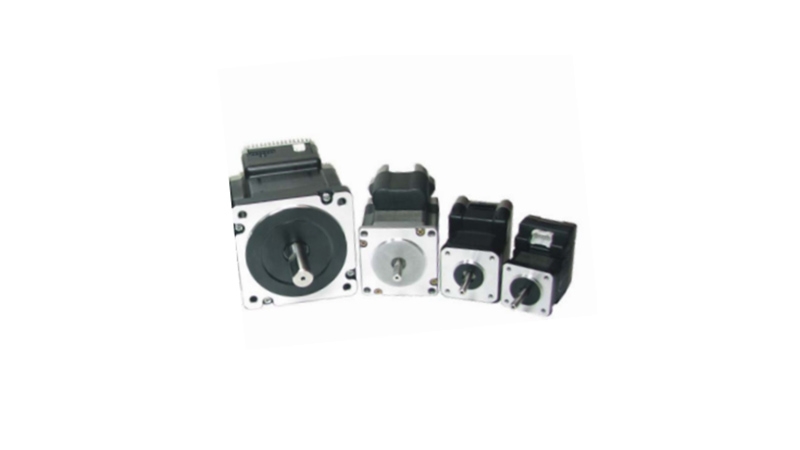

The Lexium ILP, ILT Integrated Drives consist of a 2-phase stepper motor and electronics, ideal for machine builders who want an optimised motor with onboard electronics. The integrated electronics eliminate the need to run motor cabling through the machine, reducing the potential for problems due to electrical noise.
Benefits of Lexium ILT, ILP
Benefits of Lexium ILT, ILP
Compactness
- Motor and electronics form a single, compact, and small-footprint unit
- 50% of space reduction in the control cabinet
- 40% decrease in wiring
Simplicity
- Reduction of installation costs
- Simplification of the EMC concept
- User-friendly PC commissioning software
Flexibility
The Lexium ILP, ILT are available
- In 4 flange sizes: 36mm, 42mm, 57mm, and 85mm
- With DC and AC power supply
- With 3 communication interfaces (RS485, CANopen, Pulse-Direction)
Features
Features
Torque | 0,11 Nm | 0,19 to 0,39 Nm | 0,63 to 1,77 Nm | 2,13 to 5,87 Nm |
Length | 48,5 mm | 56 to 92 mm | 67 to 119 mm | 97 to 156 mm |
Interface | Pulse / Direction , CanOpen DS402, RD485 | Pulse / Direction , CanOpen DS402, RD485 | Pulse / Direction , CanOpen DS402, RD485 | Pulse / Direction , CanOpen DS402, RD485 |
Connectors | Crimp | Flying leads or industrial connector | Flying leads or industrial connector | Flying leads or industrial connector |
Applications
Material handling
Explore moreLabelling
Printing
Healthcare
Explore more
