Self-healing is a process by which the capacitor restores itself in the event of a fault in the dielectric which can happen during high overloads, voltage transients, etc.

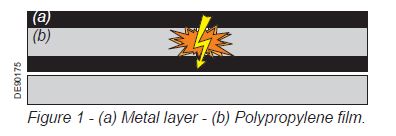

When insulation breaks down, a short duration arc is formed (figure 1)

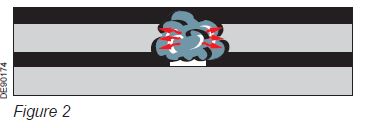

The intense heat generated by this arc causes the metallization in the vicinity of the arc to vaporise (figure 2).

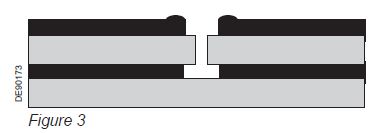

Simultaneously it re-insulates the electrodes and maintains the operation and  integrity of the capacitor (figure 3).
