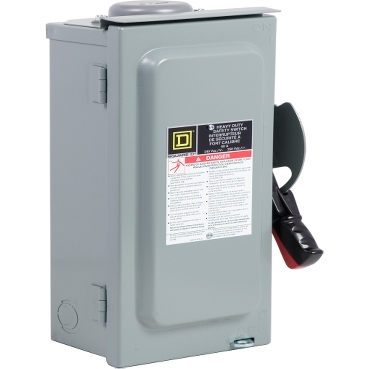

What are the repair parts for the CH222NRB, series F5? (may be shown as F05)
Product Line:
Safety Switches
Resolution:
The replacement parts for the CH222NRB, series F5 (F05) are as follows. No other parts are available.
Line Base Assembly - 4056642150 (1 required; arc suppressor assembly not included)
Load Base Assembly - 4056002650 (1 required)
Arc Suppressor Assembly - 4056001801 (1 required)
Lug Assembly - 4025101652 (per lug)
Switch Mechanism - 4056610750
Handle Assembly - 4056684150K
Handle Gasket - 4056603101
Lockplate - 4056637601
Neutral Assembly - CSN03 (includes mounting hardware and bonding screw)
Line & Load base mounting screws - 4020516001 (3 for line and 2 for load)
Arc suppressor mtg screw - 4020514501 (1 required)
Lockplate mtg. screw - 2299940562 (2 required)
Released for: Schneider Electric USA
