Issue:
Current design repair parts
Product Line:

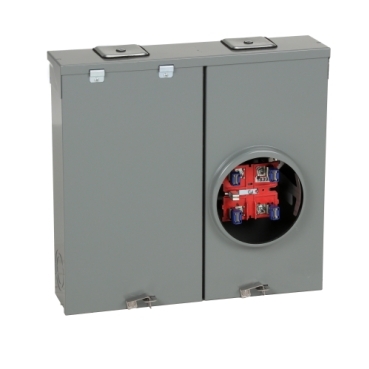

Combination Service Entrance Device
Environment:
Repair parts
Cause:
maintenance
Resolution:
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED ABOVE
The parts listed here are the only parts considered field repairable:
Meter Cover Assembly - 7329410450
Main Breaker Section Cover - 7329410550
Main Breaker Section Cover Hinges - (2) X2983
Main Breaker Section Cover Hinge Mounting Screws - (2) 2159414081
Dead Front Interior Trim - 7329420101 (also requires insulator and rivets, below)
Dead Front Interior Trim Insulator - 4053435601 (attaches to rear of interior trim)
Dead Front Interior Trim Insulator Rivets - (2) 2430313230
Dead Front Interior Trim Mounting Screw - 4020513001K (contains 10 screws; only one screw is required)
Meter Base Assembly - 4056250050 (includes meter base, (2) line side lugs, (4) meter jaws, (4) meter jaw blade guides, and load side bussing)
Meter Jaw - (4) 7329794850
Meter Jaw Mounting Nuts - (4) 2342702001
Meter Jaw Blade Guide - (4) 4052761901
Fifth Jaw Kit - 5J
Closing Cap - (2) ACP
Main Breaker - QOM2-VH type, 200 A maximum
Main Breaker Mounting Nuts - (2) 2342702001
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED ABOVE
