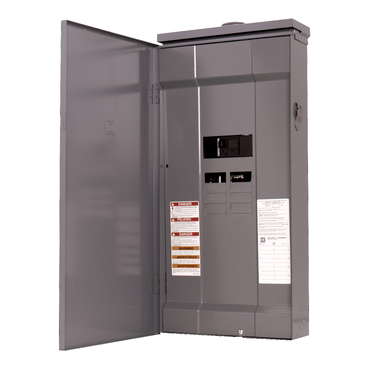

What are the repair parts for an HOM816M200FTRB, Series S03 load center?
Issue:
Current design repair parts
Product Line:
Homeline load centers
Resolution:
Only the parts listed below are considered field replaceable:
Cover - 4056317550 (includes hinges attached to left side of cover)
Cover Mounting Screw - 2142217101 (2 required)
Cover Latch - 4056314701, Latch Rivet - 2410212160 (attached to right side wall of enclosure)
Interior Trim with Labels - 4056313301K
Interior Trim Mounting Screw - 4020513001K
Interior Assembly - 4056508051 (main breaker not included)
Neutral Bonding Screw - 4028345850K
Main Breaker - QOM2200VH
Note: Covers do not have labels applied.
Current design repair parts
Product Line:
Homeline load centers
Resolution:
Only the parts listed below are considered field replaceable:
Cover - 4056317550 (includes hinges attached to left side of cover)
Cover Mounting Screw - 2142217101 (2 required)
Cover Latch - 4056314701, Latch Rivet - 2410212160 (attached to right side wall of enclosure)
Interior Trim with Labels - 4056313301K
Interior Trim Mounting Screw - 4020513001K
Interior Assembly - 4056508051 (main breaker not included)
Neutral Bonding Screw - 4028345850K
Main Breaker - QOM2200VH
Note: Covers do not have labels applied.
Released for: Schneider Electric USA
