In SoMove software is there a way to print or export adjusted parameters?

Issue:
In SoMove how do you only Print or Export to Excel the Modified Parameters?

Product Line:
Altivar Machine, Altivar Process

Environment:
SoMove

Cause:
How to Print or Export Modified parameters only

Resolution:

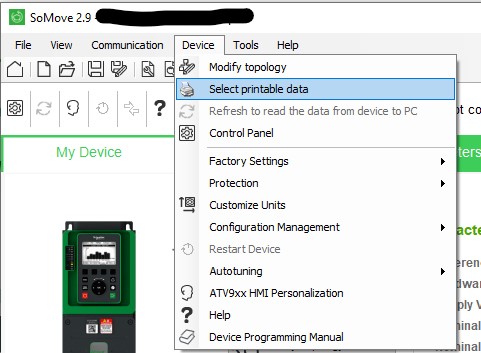

To Print or Export only those parameters.  You go to the Device Menu > Select Printable Area

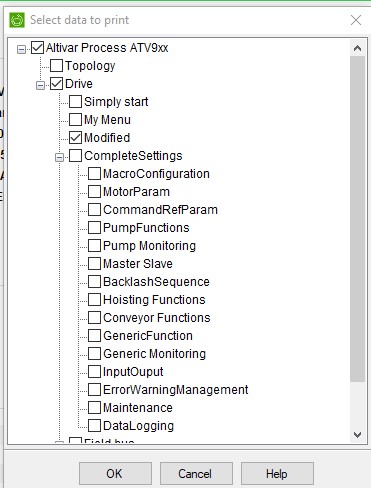

Then deselect (uncheck) all options but Modified.

Then Select the Printer icon

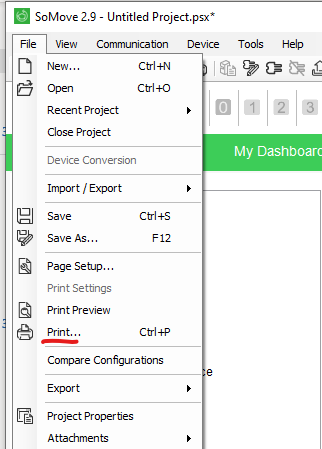

Or go to File and Print.

NOTE: Screenshots above are from V2.9, but the instructions remain the same for V2.10 and V2.11 versions of SoMove.

*******
