What surge protection device offerings are available for residential applications?

Issue:

Product Line:
Surge Protective Devices (SPDs)

Environment:
Residential SPDs

Resolution:

Internally Mounted Surge Protective Devices

• QO2175SB QO Surgebreaker - NON-plug-on neutral compatible securing up to a 22.5 kA surge current per phase.
  • 3 Year Warranty - $10,000 limited downstream equipment protection.
• QO250PSPD QO plug-on neutral (PoN) - compatible SPD securing up to a 50 kA surge current rating per phase.
  • 5 Year Warranty - $50,000 downstream equipment protection.
• HOM2175SB Homeline Surgebreaker - NON-plug-on neutral compatible securing up to a 22.5 kA surge current rating per phase.
  • 3 Year Warranty - $10,000 limited downstream equipment protection.
• HOM250PSPD Homeline plug-on neutral (PoN) - compatible SPD securing up to a 50 kA surge current rating per phase.
  • 5 Year Warranty - $50,000 downstream equipment protection.

Nipple Mounted Surge Protective Devices (Compatible with all brands of load centers)

• HEPD50 - Home Electronics Protective Device securing up to a 50 kA surge current rating per phase.
  • 3 Year Warranty - $50,000 downstream equipment protection.
• HEPD80 - Home Electronics Protective Device securing up to a 80 kA surge current rating per phase.
  • 5 Year Warranty - $75,000 downstream equipment protection.

Externally mounted Surgebreaker Plus Whole House Surge Protective Device​ (Compatible with all brands of load centers)

• SDSB80111 - Sophisticated surge protective device that protects your entire home, including cable, ethernet & telephone lines. This device provides an 80 kA surge current rating per phase.
  • 5 Year Warranty - $100,000 downstream equipment protection.

Instruction Bulletin & Warranty information / Claims Procedure Documentation Links:

• Warranty details for QO250PSPD & HOM250PSPD can be found on pages 6-8.
• Warranty details for QO2175SB & HOM2175SB can be found on pages 5-6.
• Warranty details for HEPD80 / HEPD80C, HEPD50 / HEPD50C, & HEPD25 / HEPD25C can be found on pages 10-12.
• Warranty details for SDSB80111.

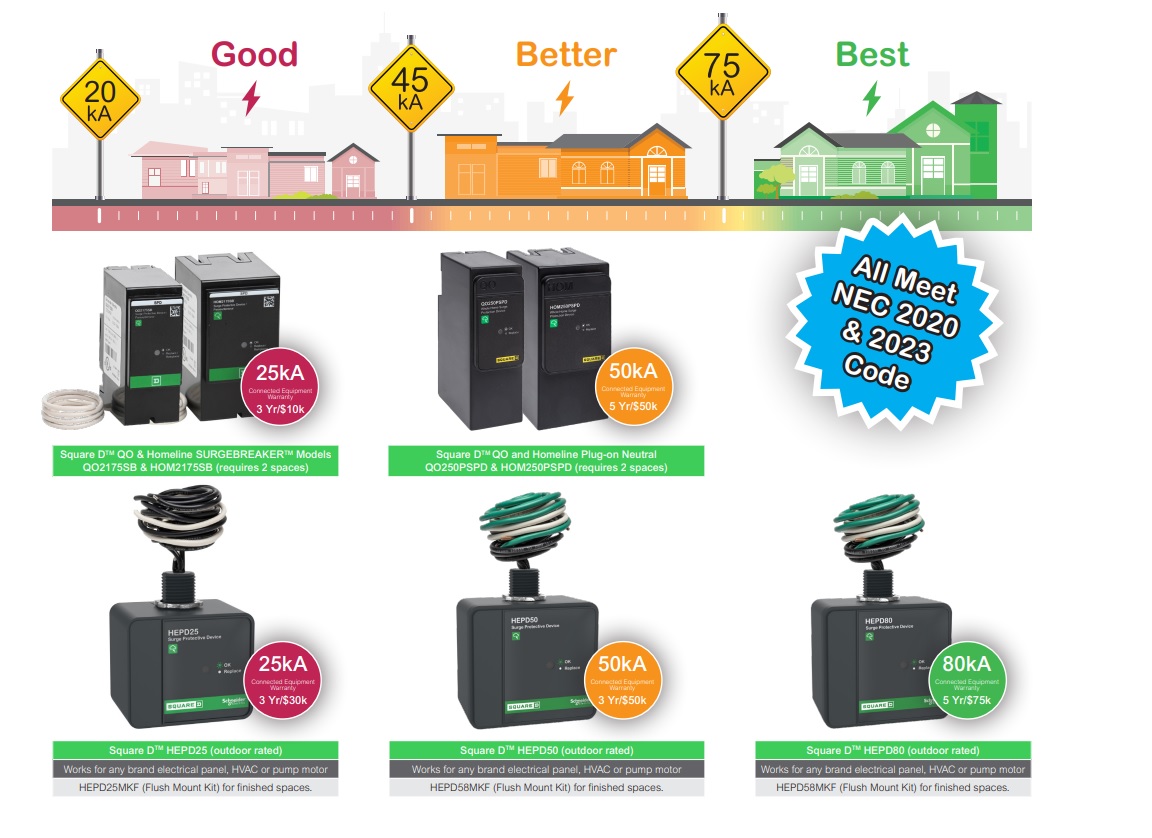

Surge Capacity Rating Scale - Residential SPD
