What are the bolt hole center line dimensions for the flanges used on a VB-9XXXX Series Valves?

Issue:
What are the dimensions for bolt hole center line on the flanges used on a VB-9XXXX Series Valves?

Product Line:
Valves and Actuators

Environment:
Installation

Cause:
Clarification

Resolution:

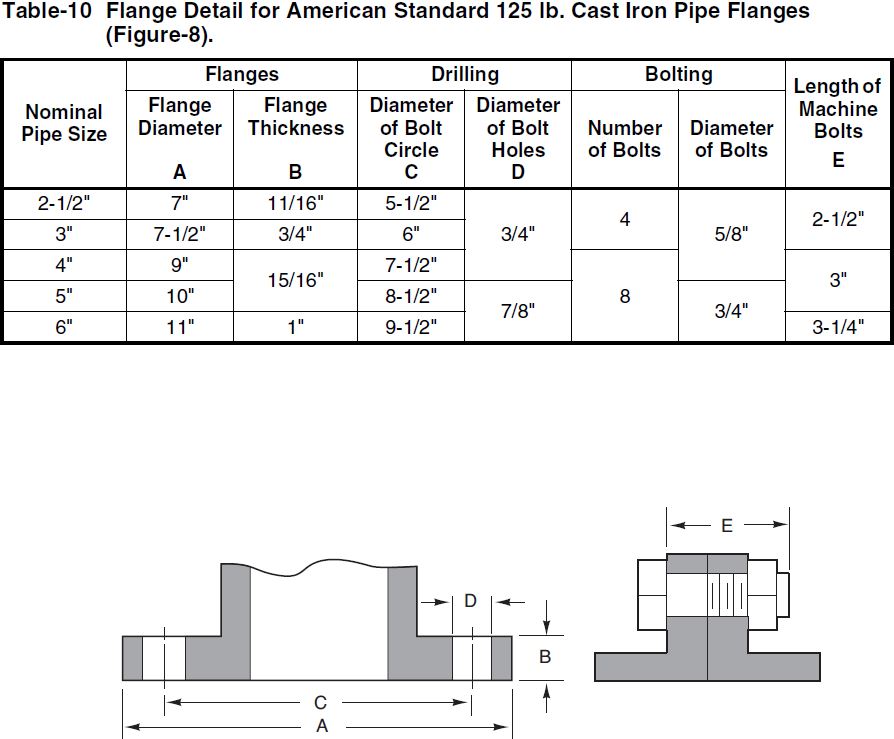

For the VB-9XXX Series Valves, use the "C" Centerline dimensions /per Pipe size listed below

The below image is listed in all the VB-9000 series valve documents

Bolt Pattern Dimensions

Released for: Schneider Electric USA

Attachment(s)

VB-9000 2-way .5 inch - 6 inch Dimensions.pdf

[55.2 KB]

VB-9000 3-way .5 inch - 6 inch Dimensions.pdf

[49.45 KB]

Published on:3/9/2018Last Modified on:4/1/2026
