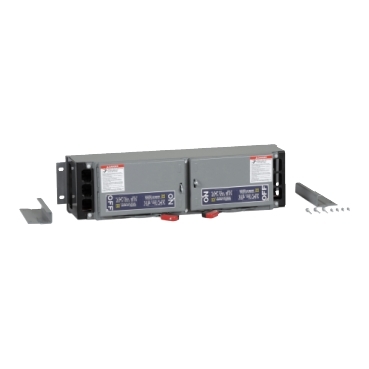

What are the repair parts for a QMB322TD, series D2 (D02)?

Product Line:
QMB Switches

Resolution:
The QMB device is a twin switch, meaning it contains two switches in the one device. Parts are listed per switch. Only the parts listed below are considered field replaceable:
Arc Shield/Suppressor Assembly - 4056669451 (1 required)
Load Base Assembly - 4056002550K (1 required; includes lugs)
Load Base Mounting Screw - 2142717161 (1 required per load base)
Handle Knob Kit - 4028343750
Lug Assembly - 4025101652 (per lug)
Lug Mounting Nut - 2342501701

Released for: Schneider Electric USA
