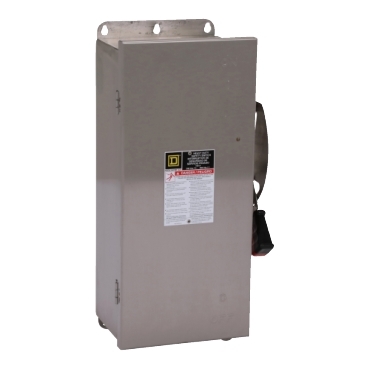

What are the repair parts for an H223DS, Series E2?
Issue:
Repair parts list for H223DS, series E2
Product Line:
Safety Switches
Resolution:
The parts listed here are the only field replaceable parts.
Line base assembly - 4051271250 (arc suppressor not included)
Load base assembly - 4051271350
Arc suppressor assembly - 4052021450
Lug assembly - CL10F (includes 6 lugs)
Cross bar insulator - 4051231901
Dust shield - 4051234901
Line and load base mounting screws - 4020506501
Handle knob kit - 4028344050K
Repair parts list for H223DS, series E2
Product Line:
Safety Switches
Resolution:
The parts listed here are the only field replaceable parts.
Line base assembly - 4051271250 (arc suppressor not included)
Load base assembly - 4051271350
Arc suppressor assembly - 4052021450
Lug assembly - CL10F (includes 6 lugs)
Cross bar insulator - 4051231901
Dust shield - 4051234901
Line and load base mounting screws - 4020506501
Handle knob kit - 4028344050K
Released for: Schneider Electric USA
