Issue:

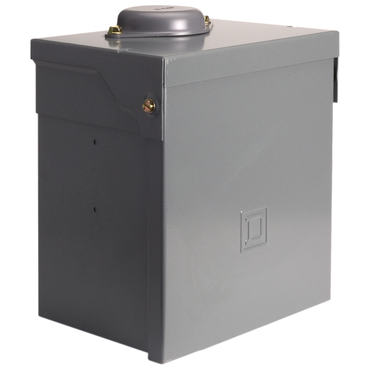

Repair parts list for PAK41CTG
Product Line:
ServicePak Outlet Panels
Resolution:
Only the parts listed below are considered field replaceable.
Cover - 4054005101
Cover Mounting Screws - 2142717161 (2 required)
Interior Trim - 4054021401
Interior Trim Mounting Screw - 4020513001K (2 required)
Interior Assembly - 4054031250 (includes base assembly, circuit breakers, and receptacles below)
Base Assembly - 4054010650
Circuit Breaker - QO120GFI and QO130
Receptacle - 4054001450 (125 volt/20 amp) and 4054004450 (125 volt/30 amp)
Receptacle Mounting Screw - 2190312160 (2 required for the 125 volt/20 amp receptacle)
Receptacle Mounting Spring Clip - 2330100001 (2 required for the 125 volt/20 amp receptacle)
Receptacle Mounting Screw - 2159412120 (3 required for the 125 volt/30 amp receptacle)
Ground Bar - 4023089855
Ground Bar Mounting Screw - 4020547901
Closing Cap - BCAP
Closing Cap Mounting Screw - 2142720241 (2 required)
Note: Covers and Interior Trims do not have labels applied.
