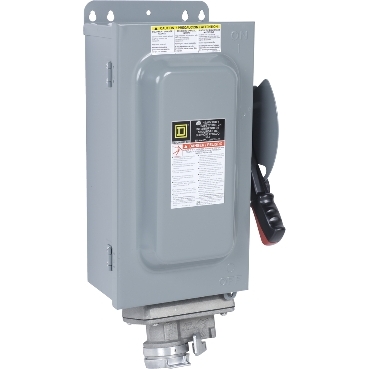

What are the repair parts for the H361WC, series F5 (may be shown as F05)?

Q: What are the repair parts for the H361WC, series F5 (may be shown as F05)?

Issue: Repair parts list for H361WC, series F5 Product Line: Safety Switches Resolution: The repair parts for the H361WC, series F5 (F05), are as follows. No other parts are available. -Line Base Assembly -4056603950 (1 required; arc suppressor assembly not included) -Load Base Assembly - 4056604150 (obsolete, no longer available, replaced by ASKD603; 1 required) -Line and Load Base Mounting Screw - 4020515101 (3 for line and 2 for load) -Arc Suppressor Assembly - 4056635550 (1 required) -Arc Suppressor Mounting Screw - 4020514501 -Handle/Mechanism kit - HMR0306FN1 (includes handle, mechanism, rod, and lockplate) -Lug Kit - AL0306F (includes all line and load lugs) -Receptacle - 2541002806 -Receptacle Mounting Screws - 4510280101 (4 required) Released for: Schneider Electric USA

Question

Accepted Answer

Issue:
Repair parts list for H361WC, series F5

Product Line:
Safety Switches

Resolution:
The repair parts for the H361WC, series F5 (F05), are as follows. No other parts are available.
-Line Base Assembly -4056603950 (1 required; arc suppressor assembly not included)
-Load Base Assembly - 4056604150 (obsolete, no longer available, replaced by ASKD603; 1 required)
-Line and Load Base Mounting Screw - 4020515101 (3 for line and 2 for load)
-Arc Suppressor Assembly - 4056635550 (1 required)
-Arc Suppressor Mounting Screw - 4020514501
-Handle/Mechanism kit - HMR0306FN1 (includes handle, mechanism, rod, and lockplate)
-Lug Kit - AL0306F (includes all line and load lugs)
-Receptacle - 2541002806
-Receptacle Mounting Screws - 4510280101 (4 required)

What are the repair parts for the H361WC, series F5 (may be shown as F05)?

Released for: Schneider Electric USA
