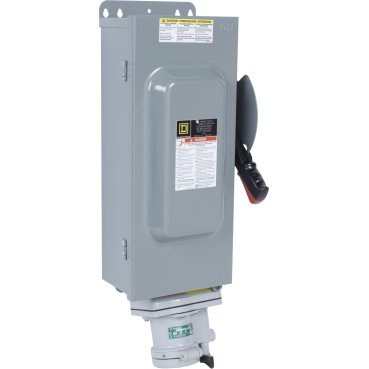

What are the repair parts for the HU363WA, series F1 (may be shown as F01)?
Issue:
Repair parts list for HU363WA, series F1
Product Line:
Safety Switches
Resolution:
The repair parts for the HU363WA, series F1 (F01) are as follows. No other parts are available.
-Line Base Assembly -4056775250 (1 required; arc suppressor assembly not included)
-Line Base Mounting Screw - 4020515101 (3 required)
-Arc Suppressor Assembly - 4056635550 (1 required)
-Arc Suppressor Mounting Screw - 4020514501
-Handle/Mechanism kit - HMR10FN1 (includes handle, mechanism, rod, and lockplate)
-Lug Kit - AL10F (one kit includes all line and load lugs)
-Receptacle - WRDK1034
-Receptacle Mounting Screws - 4510280101 (4 required)
Repair parts list for HU363WA, series F1
Product Line:
Safety Switches
Resolution:
The repair parts for the HU363WA, series F1 (F01) are as follows. No other parts are available.
-Line Base Assembly -4056775250 (1 required; arc suppressor assembly not included)
-Line Base Mounting Screw - 4020515101 (3 required)
-Arc Suppressor Assembly - 4056635550 (1 required)
-Arc Suppressor Mounting Screw - 4020514501
-Handle/Mechanism kit - HMR10FN1 (includes handle, mechanism, rod, and lockplate)
-Lug Kit - AL10F (one kit includes all line and load lugs)
-Receptacle - WRDK1034
-Receptacle Mounting Screws - 4510280101 (4 required)
Released for: Schneider Electric USA
