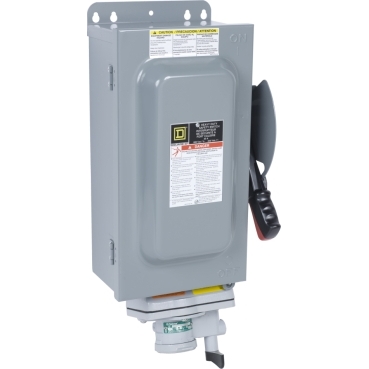

What are the repair parts for the H361AWA, series F1 (may be shown as F01)?

Q: What are the repair parts for the H361AWA, series F1 (may be shown as F01)?

Product Line: Safety Switches Resolution: The repair parts for the H361AWA, series F1 (F01) are as follows. No other parts are available. Line Base Assembly - 4056614750 (1 required; arc suppressor assembly not included) Load Base Assembly - 4056614350 (1 required) Line and Load Base Mounting Screw - 4020515101 (3 required for line and 2 for load) Arc Suppressor Assembly - 4056635550 (1 required) Arc Suppressor Mounting Screw - 4020514501 Handle/Mechanism kit - HMR0306FN12 (includes handle, mechanism, rod, and lockplate) Lug Kit - CL0306F (includes all line and load lugs) Receptacle - WRDK3034 Receptacle Mounting Screws - 4510280101 (4 required) Released for: Schneider Electric USA

Question

Accepted Answer

Product Line:
Safety Switches

Resolution:
The repair parts for the H361AWA, series F1 (F01) are as follows. No other parts are available.
Line Base Assembly - 4056614750 (1 required; arc suppressor assembly not included)
Load Base Assembly - 4056614350 (1 required)
Line and Load Base Mounting Screw - 4020515101 (3 required for line and 2 for load)
Arc Suppressor Assembly - 4056635550 (1 required)
Arc Suppressor Mounting Screw - 4020514501
Handle/Mechanism kit - HMR0306FN12 (includes handle, mechanism, rod, and lockplate)
Lug Kit - CL0306F (includes all line and load lugs)
Receptacle - WRDK3034
Receptacle Mounting Screws - 4510280101 (4 required)

What are the repair parts for the H361AWA, series F1 (may be shown as F01)?

Released for: Schneider Electric USA
