How can the ATS48 be switched from Modbus control to terminal control using one of its logic inputs?
Issue
How can a logic input be used to switch the ATS48 from Modbus to terminal control?
Product Line
ATS48
Environment:
Modbus Communication
Resolution:
Yes, can use LI3=LIL.
With LI3 = LIL (local forcing enabled):
- When LI3 is closed -> the ATS48 takes commands from the terminal.
- When LI3 is open and there are no Modbus requests -> the ATS48 takes commands from the terminals
- When LI3 is open and there are Modbus requests -> the ATS48 takes commands from Modbus
In summary: The LI3 input in LIL mode allows forcing local control (via terminals) when it is closed or when it's open & Modbus is absent. As soon as Modbus is actively communicating and LI3 open, it takes priority.

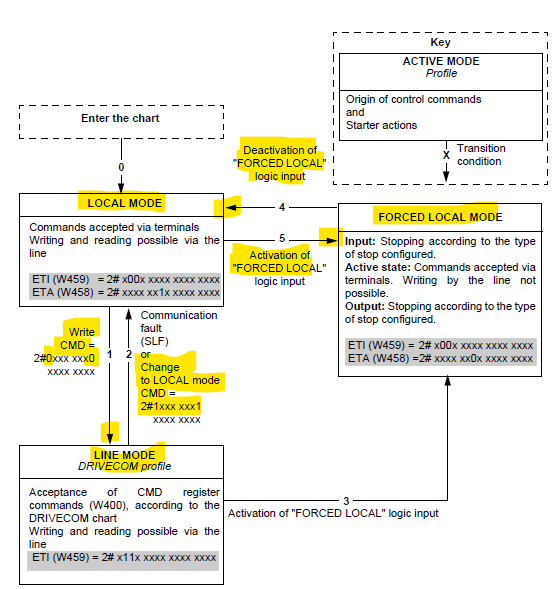

See diagram below :
Released for: Schneider Electric USA
