PowerPacT H molded case are industry standard for electrical distribution protection
PowerPacT H molded case Circuit Breakers are suitable for heavy-duty applications. They are designed to protect electrical distribution systems from damage caused by overloads and short circuits.
PowerPacT features a visual trip locator Visi-Trip, front-facing and semi-transparent breaker, and its design allows you to reach new levels of connectivity.
- Worldwide availability with unique global part numbers
- Flexible and simple offer, with proven performance
- Direct access to energy metering and energy efficiency thanks to Micrologic control units
Innovative design
Reliable quality
Scalable and sustainable
PowerPacT H-Frame Molded Case Circuit Breakers product specifications
- Available in 2-3 pole design
- Available from 15-150A at up to 600 Vac and 250 Vdc
- Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc
- Available in standard (80%) or 100% rating
- Common mounting holes, handle locations, and trim dimensions across the range allow design standardization using PowerPact H- and J-frame circuit breakers
- Available with field-interchangeable trip units
- Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes
- A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications:
- IEC Style Rotary Operating Handles
- NEMA 9421 Door Mounted Rotary Operating Mechanism
- NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields
- Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions
- 2-3 pole automatic molded case switches available at 150A
- UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global acceptance
Mounting shunt/undervoltage trip to PowerPacT H-frame breakers

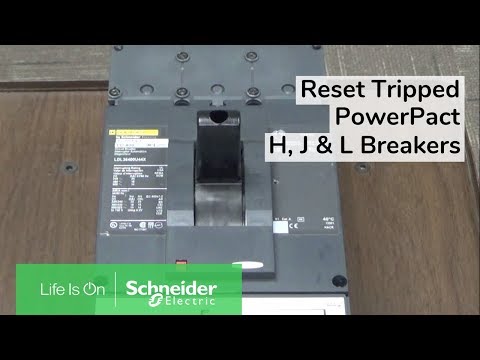

Resetting a tripped PowerPacT H, J, or L-frame circuit breaker

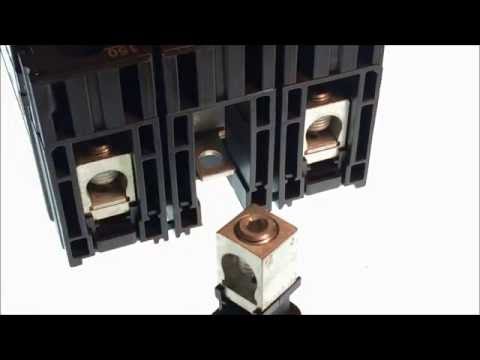

Removing lugs from PowerPacT H and J-frame circuit breakers
