View all NEMA Fusible Disconnect Switch Combination Starters

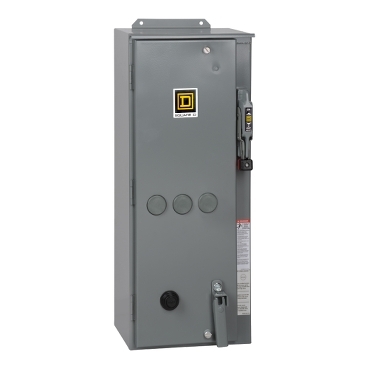

COMBO STARTER 600VAC 45A NEMAShow more characteristics
8538SDA26V02SX10 has not been replaced. Please contact your customer care center for more information.
The maximum number of products that can be compared is 4. Remove already added products.
Main ProductCombination Starter TypeS Control Circuit TypeSeparate control circuit Complementary Control Circuit Voltage110 V AC 50 Hz120 V AC 60 Hz Starter TypeNon reversing Number of Poles3P Horsepower Rating15 hp 460 V AC, 3 phase15 hp 575 V AC, 3 phase Maximum Voltage Rating600 V AC Control UnitsNo control units Pilot LightNo indicator Auxiliary Contacts1 NO thermal overload typeMelting alloy 3 Disconnect TypeFusible disconnect switch H, 30 A NEMA size2 Environment Enclosure TypeNEMA 12 painted sheet steel with external reset Ordering and shipping details Discount ScheduleCP1 ReturnabilityNo Contractual warranty Warranty18 months
